Dynatronics Dynatron TriWave Light Therapy Pads DLP3
Receive the best pricing for specialty products and bulk quantity orders. Custom rehab equipment solutions created just for you.
The Dynatronics Dynatron TriWave Light Therapy Pads DLP3 are professional light therapy accessories designed for use with compatible Dynatron Solaris Plus systems. The DLP3 includes two robust 5" x 7" light pads that deliver red, infrared and blue wavelengths individually or in combination, providing seven available light treatment combinations.
Designed for broader, hands-off light therapy applications, the dual-pad system can provide coverage around a joint, treat two separate areas simultaneously, or position both pads side-by-side to cover a larger treatment area.
(SALES TO LICENSED HEALTHCARE PROFESSIONALS ONLY!)
Dynatron TriWave Light Pads DLP3 Features
- Professional TriWave Light Therapy accessory
- Includes two robust 5" x 7" light pads
- Designed for compatible Dynatron Solaris Plus systems
- Red light wavelength capability
- Infrared light wavelength capability
- Blue light wavelength capability
- Seven available wavelength combinations
- Designed for hands-off light therapy applications
- Dual pads provide broader treatment coverage
- Can provide coverage around a joint
- Can treat two separate areas simultaneously
- Can be positioned side-by-side for larger treatment areas
- Delivers up to 10 J/cm² in less than 10 minutes
- Protective eyewear required during use
- Model / Part Number: DLP3
- 2-year manufacturer warranty
Red, Infrared & Blue TriWave Light Therapy
The Dynatron TriWave system provides three available wavelengths of light: red, infrared and blue. Each wavelength can be selected individually or combined with the others, giving clinicians a total of seven available light treatment combinations.
This multi-wavelength design allows clinicians to select the appropriate TriWave configuration according to the treatment protocol without requiring separate light therapy systems for each available wavelength.

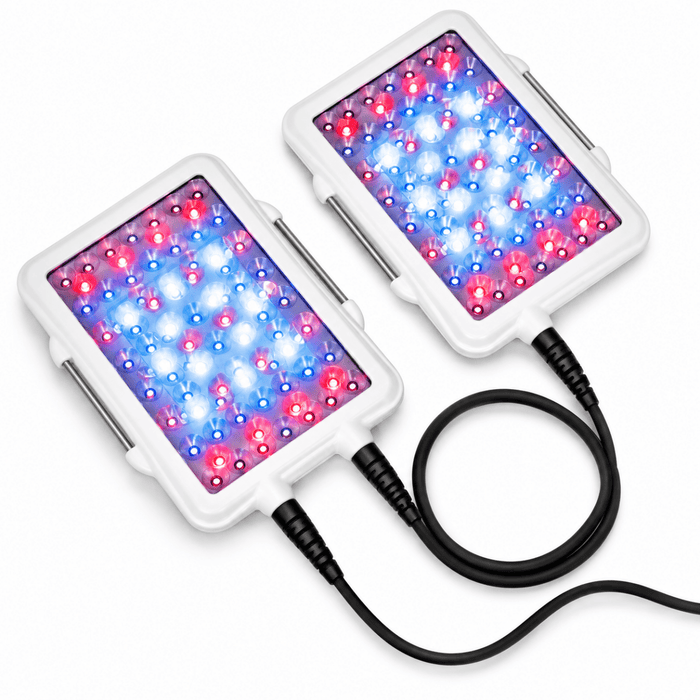

Two 5" x 7" TriWave Light Pads
The DLP3 consists of two 5" x 7" TriWave Light Pads designed to provide broader coverage than the handheld DCP3 TriWave Light Probe.
The dual-pad configuration gives clinicians several positioning options. The pads can be placed to provide greater coverage around a joint, positioned on two separate treatment areas simultaneously, or arranged side-by-side when treating a larger area of the body.
Hands-Off Professional Light Therapy
Unlike the practitioner-administered DCP3 handheld probe, the DLP3 is designed to provide a hands-off TriWave Light Therapy application. Once the pads are properly positioned according to the treatment protocol and manufacturer instructions, the clinician does not need to continuously hold an applicator over the treatment area.
This design can be particularly useful in busy physical therapy, rehabilitation, sports medicine and athletic training environments where hands-off treatment delivery may help clinicians manage treatment workflows more efficiently.
Up to 10 J/cm² in Less Than 10 Minutes
According to Dynatronics, the DLP3 TriWave Light Pads can deliver up to 10 joules per square centimeter (J/cm²) in less than 10 minutes.
Actual treatment settings, wavelength selection, dosage and application should be determined by a licensed healthcare professional according to the applicable treatment protocol and Dynatronics instructions for use.
Seven TriWave Light Combinations
The three available wavelengths can be delivered individually or in combination, providing seven available TriWave configurations:
- Red
- Infrared
- Blue
- Red + Infrared
- Red + Blue
- Infrared + Blue
- Red + Infrared + Blue
This gives clinicians the flexibility to select a single wavelength or multi-wavelength configuration according to the treatment protocol.
Compatible with Dynatron Solaris Plus
The DLP3 TriWave Light Pads are optional accessories for the Dynatron Solaris Plus platform. Dynatronics states that Solaris Plus accessories are compatible with Solaris Plus devices.
Current Solaris Plus systems available from Total Rehab Solutions include:
- Dynatronics Dynatron Solaris Plus 706 – 5-channel professional electrotherapy system with optional TriWave capability
- Dynatronics Dynatron Solaris Plus 709 – 5-channel electrotherapy and therapeutic ultrasound system with optional TriWave capability
The DLP3 TriWave Light Pads are accessories and require a compatible Dynatron Solaris Plus system for operation.
DLP3 TriWave Light Pads vs. DCP3 TriWave Light Probe
Dynatronics offers two TriWave applicator formats. The DLP3 is designed for broader, hands-off coverage using two light pads, while the DCP3 is a handheld applicator intended for smaller, targeted treatment areas.
| Feature | DLP3 TriWave Pads | DCP3 TriWave Probe |
|---|---|---|
| Applicator Type | Dual Light Pads | Handheld Probe |
| Primary Application | Broader treatment coverage | Smaller, targeted areas |
| Applicator Size | Two 5" x 7" Pads | 6 cm² Treatment Area |
| Application Method | Hands-Off | Practitioner Administered |
| Wavelengths | Red, Infrared & Blue | Red, Infrared & Blue |
| Light Combinations | 7 | 7 |
| Maximum Stated Dose | Up to 10 J/cm² in <10 minutes | Up to 6 J/cm² in <60 seconds |
For smaller areas requiring a handheld applicator, consider the Dynatronics DCP3 TriWave Light Therapy Probe.
Dynatron DLP3 TriWave Light Pads Specifications
| Manufacturer | Dynatronics |
| Product | Dynatron TriWave Light Therapy Pads |
| Model / Part Number | DLP3 |
| Product Type | Solaris Plus Light Therapy Accessory |
| Configuration | 2 Light Pads |
| Pad Size | 5" x 7" Each |
| Available Wavelengths | Red, Infrared & Blue |
| Light Combinations | 7 |
| Maximum Stated Dose | Up to 10 J/cm² in less than 10 minutes |
| Application | Hands-Off Dual-Pad Light Therapy |
| Protective Eyewear | Required |
| Compatibility | Compatible Dynatron Solaris Plus systems |
| Manufacturer Warranty | 2 Years |
TriWave Light Therapy for Professional Rehabilitation
The Dynatron DLP3 TriWave Light Pads are designed for professional healthcare environments using compatible Solaris Plus therapeutic modality systems, including physical therapy clinics, rehabilitation facilities, sports medicine practices and athletic training environments.
Dynatronics states that the TriWave system has FDA clearance for specified uses including topical heating for temporary increases in local blood circulation, temporary relief of certain minor muscle and joint aches, pain and stiffness, relaxation of muscles, muscle spasms, and minor pain and stiffness associated with arthritis.
Treatment parameters should be selected according to the manufacturer's instructions for use and the clinician's professional judgment.
Protective eyewear is required when using Dynatron TriWave Light Therapy.
Expand Your Dynatron Solaris Plus System
The DLP3 is one of several optional accessories designed to expand the capabilities of compatible Dynatron Solaris Plus equipment. Other products available from Total Rehab Solutions include the DCP3 TriWave Light Therapy Probe, ThermoStim Probe DTSP1 and Solaris Plus Cart.
Explore the complete Dynatronics equipment collection to compare Solaris Plus systems, TriWave Light Therapy products and compatible accessories.
Need help determining whether the DLP3 is compatible with your Solaris Plus equipment? Contact Total Rehab Solutions for assistance with equipment and accessory selection.
Dynatron DLP3 TriWave Light Pads FAQs
What are the Dynatron DLP3 TriWave Light Pads?
The Dynatron DLP3 is a dual-pad TriWave Light Therapy accessory for compatible Solaris Plus systems. The system includes two 5" x 7" light pads capable of delivering red, infrared and blue wavelengths individually or in combination.
How many light pads are included with the DLP3?
The DLP3 includes two 5" x 7" TriWave Light Pads.
What wavelengths do the DLP3 TriWave Light Pads provide?
The DLP3 provides red, infrared and blue light. These wavelengths can be delivered individually or in combination, providing seven available light treatment combinations.
How quickly can the DLP3 deliver light therapy?
Dynatronics states that the DLP3 TriWave Light Pads can deliver up to 10 J/cm² in less than 10 minutes, depending on the selected treatment parameters.
Can the two DLP3 pads treat separate areas at the same time?
Yes. Dynatronics states that the dual pads can be used to treat two separate areas simultaneously, provide greater coverage around a joint, or be placed side-by-side for larger treatment areas.
What is the difference between the DLP3 Pads and DCP3 Probe?
The DLP3 uses two 5" x 7" light pads for broader, hands-off treatment coverage. The DCP3 is a handheld probe with a 6 cm² treatment area designed for smaller, targeted areas.
Are the DLP3 Light Pads compatible with the Solaris Plus 706?
Yes. The DLP3 TriWave Light Pads are compatible with the Dynatron Solaris Plus 706 when configured for TriWave Light Therapy.
Are the DLP3 Light Pads compatible with the Solaris Plus 709?
Yes. The DLP3 TriWave Light Pads are compatible with the Dynatron Solaris Plus 709 when configured for TriWave Light Therapy.
Can the DLP3 TriWave Light Pads be used by themselves?
No. The DLP3 pads are accessories designed for operation with a compatible Dynatron Solaris Plus system.
Is protective eyewear required with the DLP3?
Yes. Dynatronics specifies that protective eyewear is required when using TriWave Light Therapy.
What is the part number for the Dynatron TriWave Light Pads?
The Dynatron TriWave Light Therapy Pads part number is DLP3.
