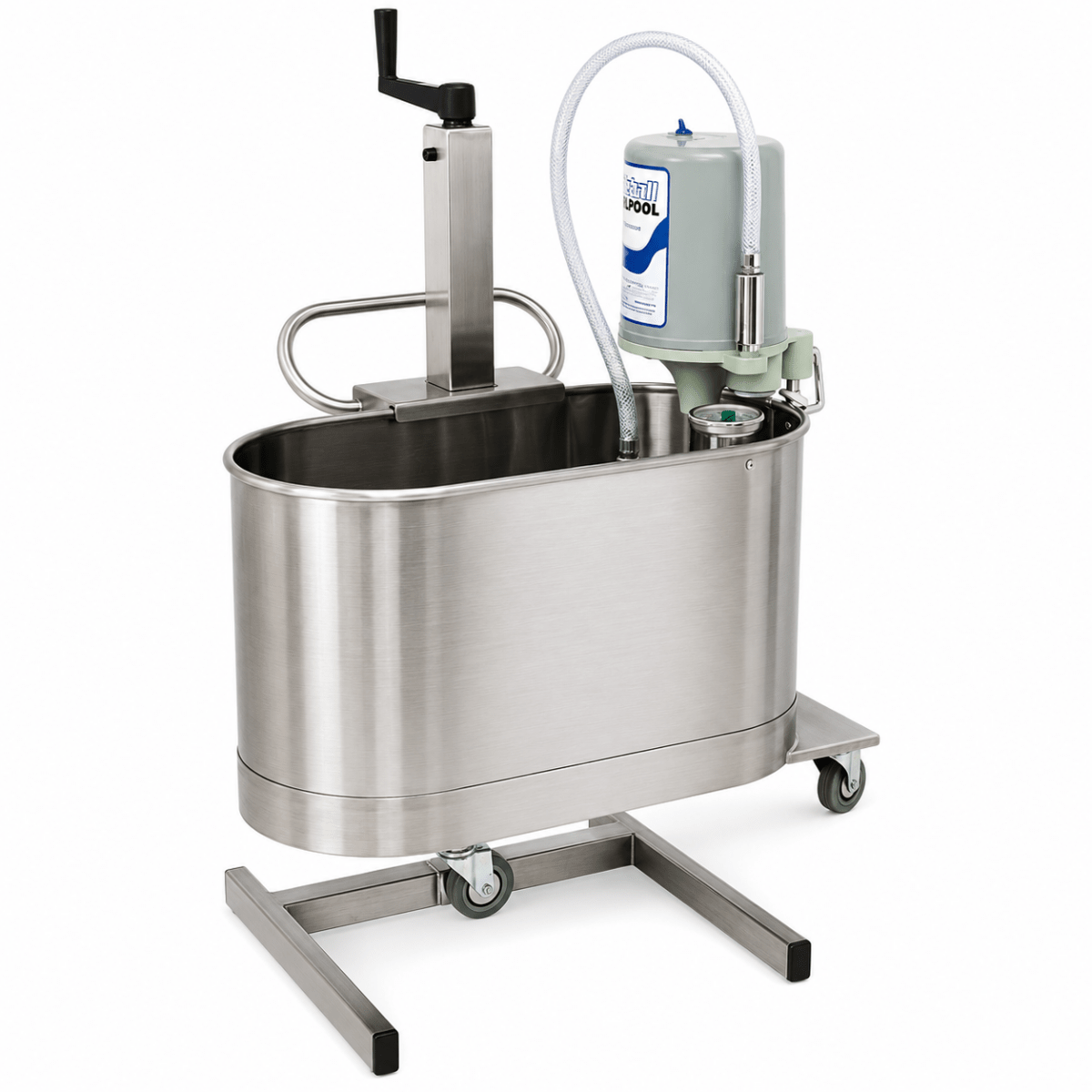

Whitehall 22 Gallon Whirlpool with HydroLift Lifting System

The Whitehall 22 Gallon Whirlpool with HydroLift Whirlpool Lifting System combines the WHE-22-M mobile extremity whirlpool with the HL-22-M HydroLift to create an adjustable hydrotherapy system for physical therapy clinics, occupational therapy practices, hand therapy centers, athletic training facilities, sports medicine departments, podiatry practices, rehabilitation hospitals, and other professional healthcare environments.

The 22-gallon stainless steel extremity whirlpool is designed for treatment of the lower leg and lower arm. Its larger tank provides additional length, width, and depth for positioning the foot, ankle, calf, leg below the knee, hand, wrist, forearm, arm, and elbow.

The matching HydroLift raises and lowers the whirlpool tank to support more practical treatment positioning and clinician access. This adjustable configuration can reduce the need to work over a floor-level tank while making it easier to accommodate different chairs, patient positions, and treatment arrangements.

Complete 22 Gallon Whirlpool and HydroLift System

This listing includes both components required for the adjustable hydrotherapy system:

• Whitehall WHE-22-M: 22-gallon mobile extremity whirlpool
• Whitehall HL-22-M: HydroLift designed for the 22-gallon whirlpool

The HydroLift raises and lowers the whirlpool tank itself. It is not a patient lift and must not be used to lift, transfer, support, or position a person.

Whitehall 22 Gallon Whirlpool with HydroLift Features

• Includes the WHE-22-M whirlpool and HL-22-M HydroLift
• 22-gallon mobile extremity whirlpool
• Designed for upper- and lower-extremity hydrotherapy
• Ideal for the lower leg and lower arm
• Suitable for the foot, ankle, calf, leg below the knee, hand, wrist, forearm, arm, and elbow
• HydroLift raises and lowers the whirlpool for adjustable treatment positioning
• Helps improve clinician access to the tank and treatment area
• Heavy-duty Type 304 stainless steel whirlpool construction
• Durable stainless steel surface that is easy to clean and sanitize
• Heavy-duty locking casters for facility transport
• No permanent plumbing connection required
• Reversing turbine supports water circulation and tank emptying
• Pump-out hose directs used water into an available sink or floor drain
• Professional 1/2 HP turbine motor
• Can function as a circulating warm-water whirlpool or cold-water immersion tank
• Standard stainless steel finish
• Made in the USA by Whitehall Manufacturing

Adjustable Hydrotherapy Positioning

The Whitehall HL-22-M HydroLift is designed specifically for the dimensions of the 22-gallon extremity whirlpool. It allows the tank to be raised or lowered according to the treatment area, patient position, seating arrangement, and clinical workflow.

Raising the whirlpool can provide improved access when treating the hand, wrist, forearm, elbow, foot, ankle, calf, or lower leg. The adjustable height may also make it easier for clinicians to observe treatment, assist with extremity placement, and reach the tank during setup and cleaning.

The HydroLift has a maximum overall height of 56 inches. This measurement refers to the lift assembly and should not be interpreted as the height of the whirlpool rim.

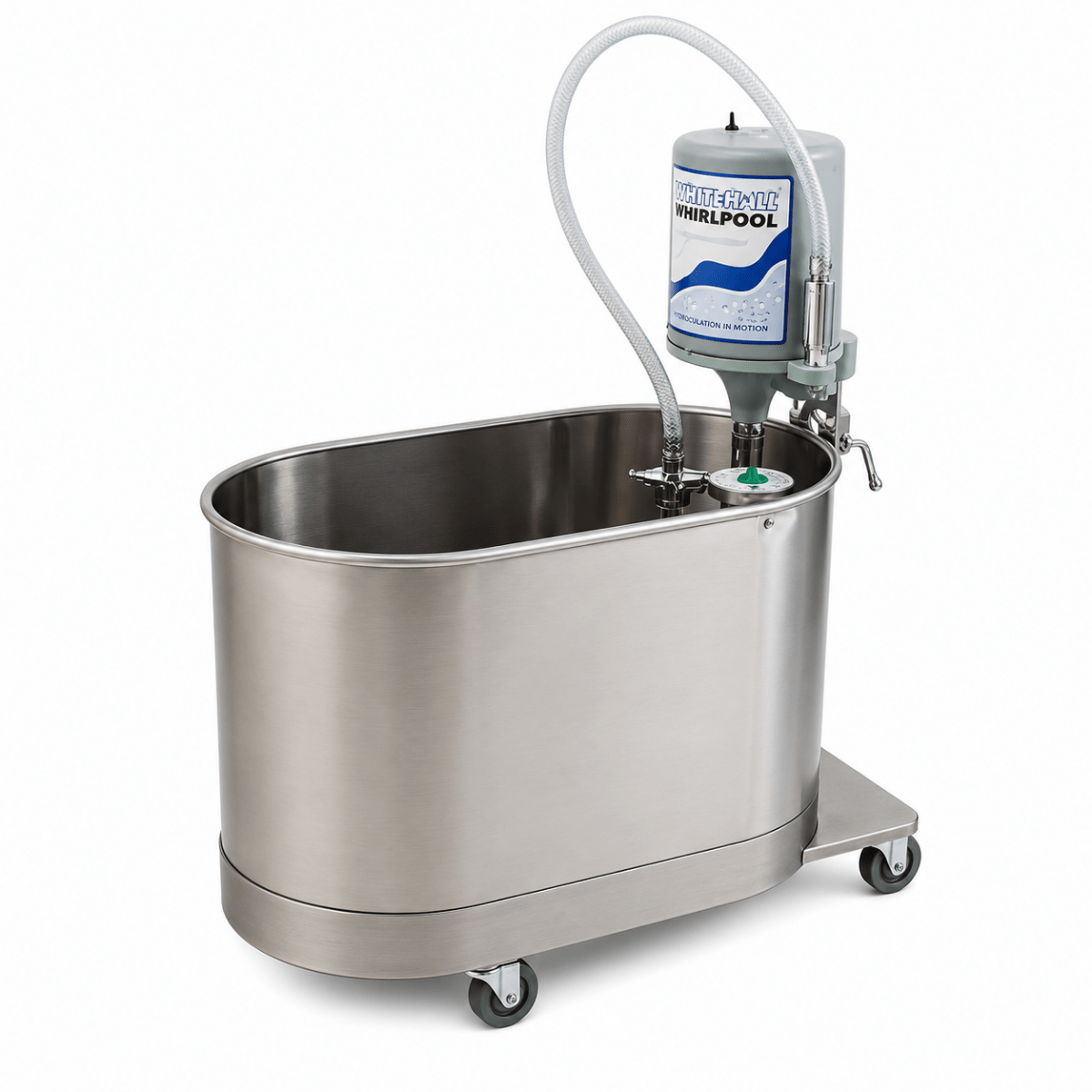

Larger Extremity Whirlpool for Expanded Treatment

The WHE-22-M provides more treatment space than the smaller 10- and 15-gallon Whitehall extremity whirlpools. Its 28-inch-long, 15-inch-wide, and 18-inch-deep interior offers additional room for positioning the lower leg, calf, forearm, arm, and elbow.

The increased width and depth can also make it easier to accommodate larger extremities and different treatment positions. This makes the 22-gallon model a versatile option for clinics that regularly provide both upper- and lower-extremity hydrotherapy.

Mobile Hydrotherapy Without Permanent Plumbing

The WHE-22-M is a mobile whirlpool that does not require a dedicated plumbing connection. Its standard reversing turbine can pump used water through the supplied pump-out hose and into an appropriate sink or floor drain.

Heavy-duty locking casters allow the whirlpool system to be repositioned when necessary. Before moving the combined unit, the tank should be emptied and lowered. The whirlpool and HydroLift should remain stationary with the casters locked during treatment.

Warm-Water Whirlpool and Cold-Tank Use

The Whitehall 22 Gallon Mobile Extremity Whirlpool can support both circulating warm-water hydrotherapy and cold-water immersion. For cold-tank use, the turbine assembly and thermometer can be removed from the tank.

The turbine assembly and thermometer can be reinstalled when circulating warm-water whirlpool treatment is required. This versatility allows rehabilitation professionals to use one tank for different clinician-directed hydrotherapy protocols.

Common Clinical Applications

The Whitehall 22 Gallon Whirlpool with HydroLift is suitable for professional facilities that provide upper- and lower-extremity rehabilitation, athletic recovery, and hydrotherapy.

• Physical therapy
• Occupational therapy
• Hand therapy
• Podiatry
• Foot and ankle rehabilitation
• Athletic training
• Sports medicine
• Orthopedic rehabilitation
• Post-injury recovery
• Lower-leg and calf hydrotherapy
• Hand, wrist, forearm, arm, and elbow therapy
• Warm-water whirlpool treatment
• Cold-water immersion
• Long-term care and rehabilitation facilities

22 Gallon Whirlpool Specifications

• Manufacturer: Whitehall Manufacturing
• Whirlpool Model: WHE-22-M
• Tank Capacity: 22 gallons
• Internal Tank Length: 28 inches
• Internal Tank Width: 15 inches
• Internal Tank Depth: 18 inches
• Tank Height: 24 inches
• Tank Style: Extremity whirlpool
• Configuration: Mobile
• Tank Material: Heavy-duty Type 304 stainless steel
• Finish: Standard stainless steel
• Turbine Motor: 1/2 HP jet-pump motor
• Drainage: Reversing turbine with pump-out hose assembly
• Mobility: Heavy-duty locking casters
• Primary Treatment Areas: Lower leg and lower arm
• Compliance: ETL Classified by Intertek

HydroLift Specifications

• HydroLift Model: HL-22-M
• Compatible Whirlpool: Whitehall WHE-22-M 22-gallon extremity whirlpool
• Base Width: 24 inches
• Base Depth: 21.5 inches
• Maximum HydroLift Height: 56 inches
• Compatible Tank Length: 28 inches
• Compatible Tank Width: 15 inches
• Compatible Tank Depth: 18 inches
• Compatible Tank Height: 24 inches
• Compatible Tank Capacity: 22 gallons
• Function: Raises and lowers the whirlpool tank

Benefits of the Whirlpool and HydroLift Combination

Improved Clinician Access

The HydroLift allows the whirlpool to be raised from a lower position to a more accessible working height. This may reduce excessive bending and make it easier to monitor treatment, assist the patient, and reach the tank during setup and cleaning.

Flexible Treatment Height

The adjustable tank position supports different treatment arrangements for the upper and lower extremities. Clinicians can position the whirlpool around a seated patient, treatment chair, or other clinical setup based on the area being treated.

Expanded Extremity Capacity

The 22-gallon tank provides more interior space than the smaller Whitehall extremity whirlpools. Its additional length, width, and depth make it well suited for the calf, lower leg, forearm, arm, and elbow while also accommodating the hand, wrist, foot, and ankle.

No Permanent Plumbing Required

The mobile whirlpool can be used in treatment areas with access to an appropriate water source and drain. The reversing turbine and pump-out hose allow used water to be discharged into an available sink or floor drain.

Warm- and Cold-Water Versatility

The removable turbine assembly and thermometer allow the tank to be used for cold-water immersion as well as circulating warm-water whirlpool treatment.

Durable Stainless Steel Construction

The whirlpool tank is fabricated from heavy-duty Type 304 stainless steel for strength and durability in professional healthcare environments. The stainless steel surface is also easy to clean and sanitize as part of routine facility maintenance.

22 Gallon vs. 15 Gallon vs. 10 Gallon HydroLift Whirlpools

The Whitehall HydroLift whirlpool systems are available in different tank sizes for different treatment needs.

• 10 Gallon: The most compact option, designed primarily for foot, ankle, and lower-leg treatment.
• 15 Gallon: Provides additional length and depth for the calf, lower leg, forearm, arm, and elbow.
• 22 Gallon: Offers the largest tank of the three, with additional width and depth for expanded upper- and lower-extremity positioning.

The 22-gallon model may be the best choice for facilities that treat a wider range of extremities or need more room for larger patients. The smaller models may be preferable when conserving floor space is the priority.

HydroLift System vs. Standard Mobile Whirlpool

A standard mobile extremity whirlpool remains at a fixed tank height. The HydroLift system adds vertical adjustment so the whirlpool can be raised or lowered according to the patient position and treatment setup.

The HydroLift configuration may be preferable for facilities that frequently treat seated patients, perform both upper- and lower-extremity therapy, or want to improve clinician access to the tank. A standard mobile whirlpool may be sufficient when height adjustment is not needed.

Why Choose Whitehall Hydrotherapy Equipment?

Whitehall manufactures professional hydrotherapy equipment for physical therapy, occupational therapy, hand therapy, athletic training, podiatry, rehabilitation, and other healthcare environments. Its whirlpools combine heavy-duty stainless steel construction, professional turbine systems, practical mobility, and tank sizes designed for specific treatment areas.

Browse our complete Whitehall hydrotherapy equipment collection, compare additional physical therapy whirlpools, or read our guide on how to choose the best physical therapy whirlpool.

Frequently Asked Questions

What is included with the Whitehall 22 Gallon Whirlpool with HydroLift?

This listing includes the Whitehall WHE-22-M 22-gallon mobile extremity whirlpool and the Whitehall HL-22-M HydroLift designed for the 22-gallon tank.

Does the HydroLift lift the patient?

No. The HydroLift raises and lowers the whirlpool tank only. It is not designed to lift, transfer, support, or position a patient.

How high is the HL-22-M HydroLift?

The manufacturer lists the maximum HydroLift height as 56 inches. This measurement refers to the lift assembly rather than the height of the whirlpool rim.

Which areas of the body can be treated?

The 22-gallon extremity whirlpool is designed for the lower leg and lower arm. Treatment areas may include the foot, ankle, calf, leg below the knee, hand, wrist, forearm, arm, and elbow.

Does the whirlpool require permanent plumbing?

No. The WHE-22-M is a mobile whirlpool that does not require a permanent plumbing connection. Its reversing turbine and pump-out hose allow used water to be discharged into an appropriate sink or floor drain.

Can the whirlpool be used as a cold tank?

Yes. The turbine assembly and thermometer can be removed when the tank is used for cold-water immersion. They can be reinstalled when circulating warm-water whirlpool treatment is needed.

Can the whirlpool and HydroLift system be moved?

Yes. The whirlpool should be emptied and lowered before the combined system is repositioned using the whirlpool casters. The system should remain stationary with the casters locked during treatment.

What are the whirlpool tank dimensions?

The interior tank measures 28 inches long, 15 inches wide, and 18 inches deep. The tank height is 24 inches, and its capacity is 22 gallons.

What are the HydroLift base dimensions?

The HL-22-M HydroLift base measures 24 inches from side to side and 21.5 inches from front to back.

How does the 22-gallon model compare to the 15-gallon model?

The 22-gallon model has a longer, wider, and deeper tank, providing additional room for the lower leg, calf, forearm, arm, and elbow. The 15-gallon model has a smaller footprint and may be more suitable where treatment-room space is limited.

What material is the whirlpool tank made from?

The tank is fabricated from heavy-duty Type 304 stainless steel for strength, durability, and ease of cleaning.

Does the Whitehall 22 Gallon Whirlpool with HydroLift ship by freight?

Yes. Because this listing includes both a whirlpool and lifting system, it ships by freight carrier, and additional freight charges may apply. Contact Total Rehab Solutions to confirm freight costs, availability, and product details before ordering.

Need help confirming whether this HydroLift system is right for your facility? Contact Total Rehab Solutions for assistance with specifications, availability, treatment-room planning, and freight costs.
