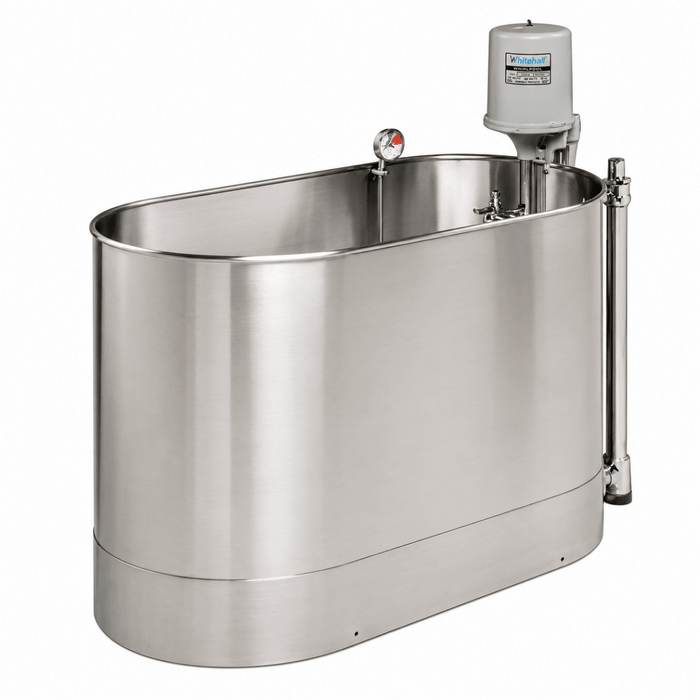

Whitehall 105 Gallon Hi-Boy Whirlpool - Stationary

The Whitehall 105 Gallon Hi-Boy Whirlpool - Stationary (WHH-105-S) is a large-capacity hydrotherapy tub designed for physical therapy, rehabilitation, sports medicine, and athletic training applications. Its deep Hi-Boy tank supports shallow or deep body immersion, providing treatment coverage for the lower extremities, hips, lower back, and other areas below the waist.

Constructed from durable Type 304 stainless steel, the WHH-105-S combines a spacious 105-gallon tank with a professional 1/2 HP turbine assembly. The stationary configuration is designed for permanent installation in dedicated hydrotherapy treatment areas, making it well suited for clinics, hospitals, rehabilitation centers, and athletic training facilities.

105 Gallon Hi-Boy Hydrotherapy Tub

The Whitehall WHH-105-S features a taller and deeper Hi-Boy tank designed to provide increased immersion compared with lower-profile whirlpool configurations. Its 28-inch tank depth allows clinicians to perform shallow or deep immersion treatments depending on the application.

With a 105-gallon capacity and a 48-inch-long by 24-inch-wide tank, this professional hydrotherapy tub provides substantial treatment space while maintaining a practical footprint for dedicated rehabilitation and athletic training environments.

Physical Therapy Whirlpool for Deeper Immersion

The WHH-105-S is designed for professional hydrotherapy applications where greater immersion depth is needed. Its Hi-Boy configuration is particularly well suited for treatment involving the lower extremities, hips, and lower back.

This professional physical therapy whirlpool is a strong option for facilities including:

• Physical therapy and rehabilitation clinics
• Athletic training rooms
• Sports medicine facilities
• Hospitals and healthcare facilities
• Colleges and universities
• Professional and collegiate athletic programs

Durable Type 304 Stainless Steel Construction

The Whitehall WHH-105-S hydrotherapy tub is fabricated from heavy-duty Type 304 stainless steel for strength and durability in professional treatment environments.

The stainless steel tank provides a smooth, durable surface that supports routine cleaning and sanitation between treatments. Its construction is designed to withstand frequent use in physical therapy, rehabilitation, sports medicine, and athletic training settings.

Adjustable 1/2 HP Whirlpool Turbine

The WHH-105-S includes Whitehall's professional turbine assembly powered by a 1/2 HP jet pump motor. The turbine provides water circulation and agitation for professional whirlpool hydrotherapy treatments.

The turbine assembly can be raised, lowered, and positioned to help direct water agitation toward the desired treatment area. The motor also incorporates automatic thermal overload protection and lifetime-sealed bearings for dependable operation.

Stationary Hydrotherapy Tub for Dedicated Treatment Areas

The WHH-105-S is a stationary hydrotherapy tub designed for permanent installation. Unlike a mobile whirlpool, the stationary configuration connects directly to the facility's water supply and drainage system.

This setup makes the 105 Gallon Hi-Boy a practical choice for facilities with a dedicated hydrotherapy treatment area where the whirlpool will remain in a fixed location. A high-capacity gravity drain supports routine drainage following treatment.

Water Temperature Monitoring

A tank-mounted dual-scale thermometer allows clinicians to monitor water temperature during hydrotherapy treatments. The thermometer provides readings in both Fahrenheit and Celsius for convenient use in professional treatment environments.

Warm Hydrotherapy and Cold-Water Applications

The Whitehall WHH-105-S can support traditional circulating whirlpool hydrotherapy as well as cold-water immersion applications. When cold-temperature treatment is required, the turbine assembly and thermometer can be removed so the stainless steel tub can function as a cold tank.

The turbine assembly and thermometer can then be reinstalled when circulating whirlpool hydrotherapy is needed, providing additional treatment flexibility from a single professional hydrotherapy tub.

Whitehall WHH-105-S Hydrotherapy Tub Features

• 105-gallon professional hydrotherapy tub
• Hi-Boy design for increased immersion depth
• 28-inch-deep stainless steel tank
• Designed for shallow or deep body immersion
• Suitable for treatment involving the lower extremities, hips, and lower back
• Heavy-duty Type 304 stainless steel construction
• Stationary configuration for permanent installation
• Direct connection to facility water supply and drainage
• 1/2 HP jet pump turbine motor
• Adjustable turbine position and water agitation
• Automatic thermal overload protection
• Lifetime-sealed turbine bearings
• High-capacity gravity drain
• Tank-mounted dual-scale thermometer
• Suitable for professional physical therapy and rehabilitation environments

Whitehall WHH-105-S Specifications

• Manufacturer: Whitehall Manufacturing
• Model: WHH-105-S
• Product Type: Hi-Boy Hydrotherapy Whirlpool
• Configuration: Stationary
• Capacity: 105 gallons (397.46 liters)
• Tank Length: 48"
• Tank Width: 24"
• Tank Depth: 28"
• Overall Tank Height: 33-1/2"
• Material: Type 304 stainless steel
• Turbine Motor: 1/2 HP
• Standard Electrical: 115V, 50/60 Hz
• Drain: High-capacity gravity drain
• Recommended Treatment Area: Lower back down
• Compliance: ETL Classified, Intertek 5016885

Hi-Boy vs. Lo-Boy Hydrotherapy Tubs

The primary advantage of a Hi-Boy whirlpool is its greater tank depth. The WHH-105-S has a 28-inch-deep tank that provides increased immersion for the lower extremities, hips, and lower back. This makes it a strong choice when deeper immersion is more important than the lower access height provided by a Lo-Boy model.

Facilities that prioritize easier access or a longer, shallower treatment area may instead want to consider one of Whitehall's Lo-Boy hydrotherapy whirlpools.

Choosing the Right Whitehall Whirlpool

The Whitehall 105 Gallon Hi-Boy Whirlpool - Stationary is designed for facilities that need a large-capacity physical therapy whirlpool with greater immersion depth and a permanent installation. Its combination of a deep stainless steel tank, adjustable turbine, and professional hydrotherapy design makes it particularly well suited for rehabilitation and athletic training environments.
