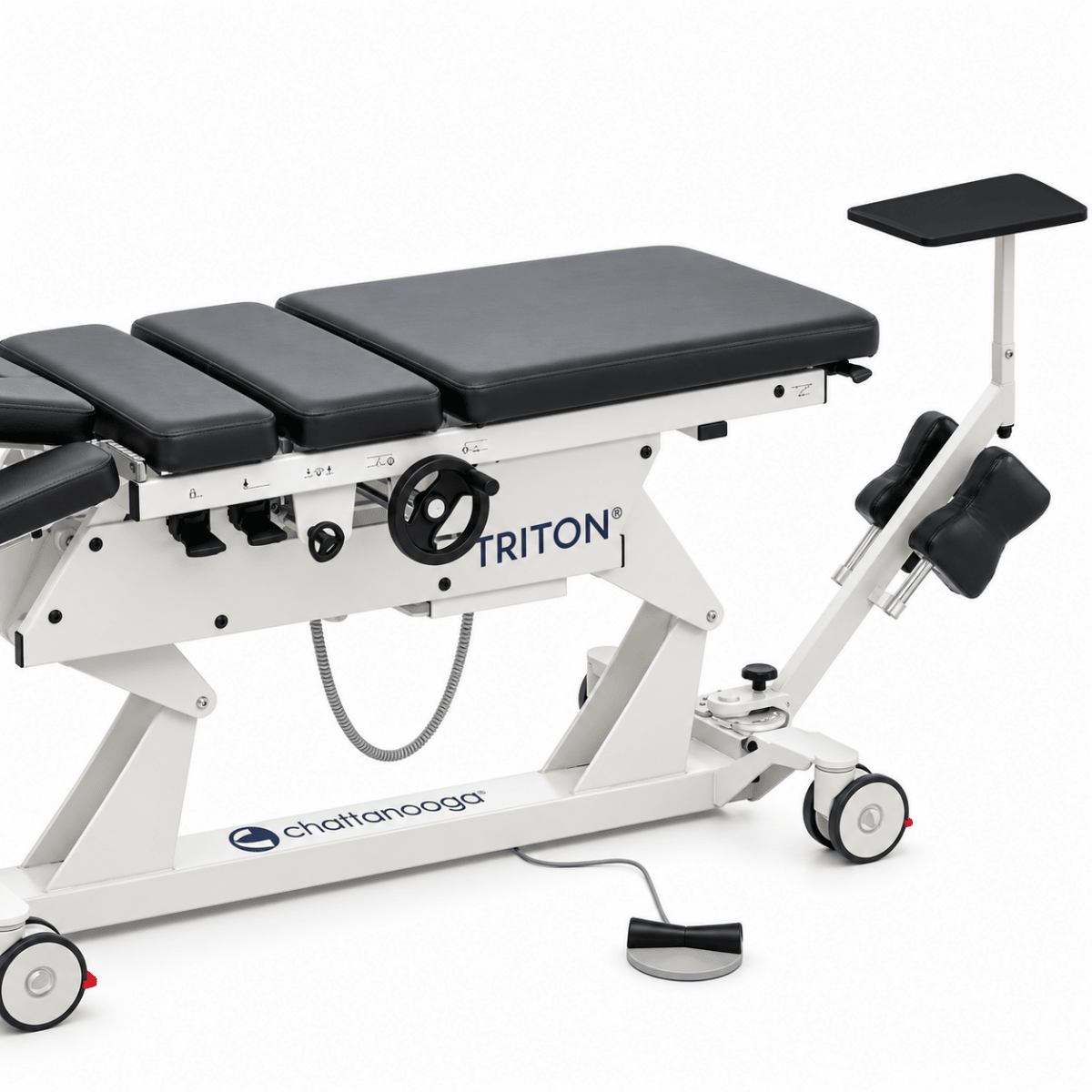

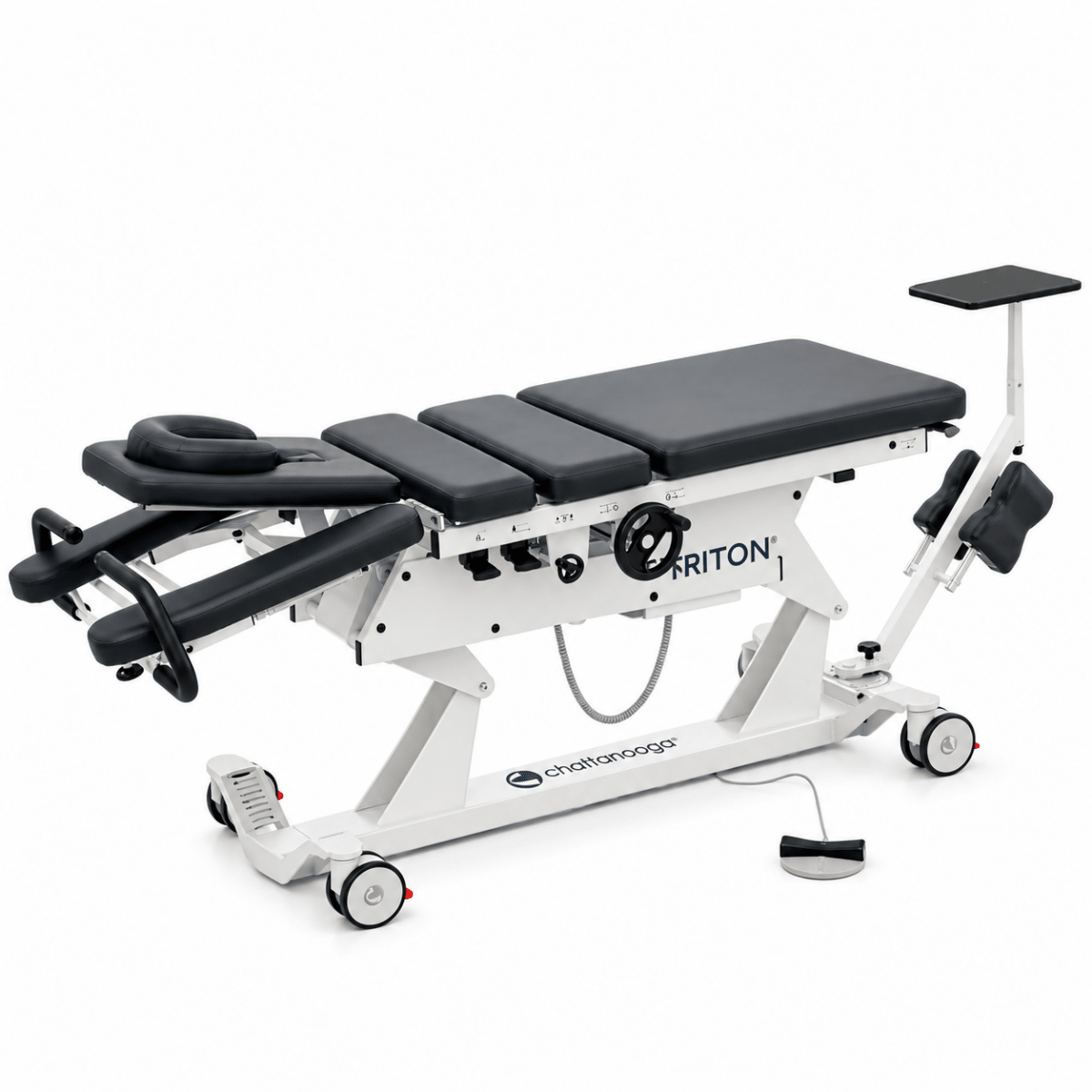

Chattanooga Triton® 6M Traction Table
Request a custom quote to receive the best pricing for specialty products and bulk quantity orders. Custom rehab equipment solutions created just for you!
Comprised of 6 sections, the Triton 6M traction table uses a combination of gas springs and electric power to aid manual adjustment, allowing for easy control of table positioning. Each section is adjustable, providing a wealth of achievable patient positioning options. Together with a Triton Traction Unit, the Triton 6M is a solid choice for the basis of any therapist’s practice.
- 6-section treatment table provides maximum patient comfort in prone and supine positions to aid manual and traction therapy
- Pelvic tilt section can be adjusted from 0° to 15° to aid flexion of lumbar spine and to help address pelvic asymmetry
- Head piece can be repositioned from -15° to +40° to allow easy access to thoracic and cervical spine
- Tuck-away grab bars for hanging traction without thoracic restraint
- Leg section is adjustable from 0° to 45°
- Gas springs assist in friction-free movement of head, pelvic, chest and leg sections which are easily accessible from either side of the table
- Foot/hand controller allows easy adjustment of table height and includes a lockable safety mechanism
- Complete range of accessories to suit every patient need

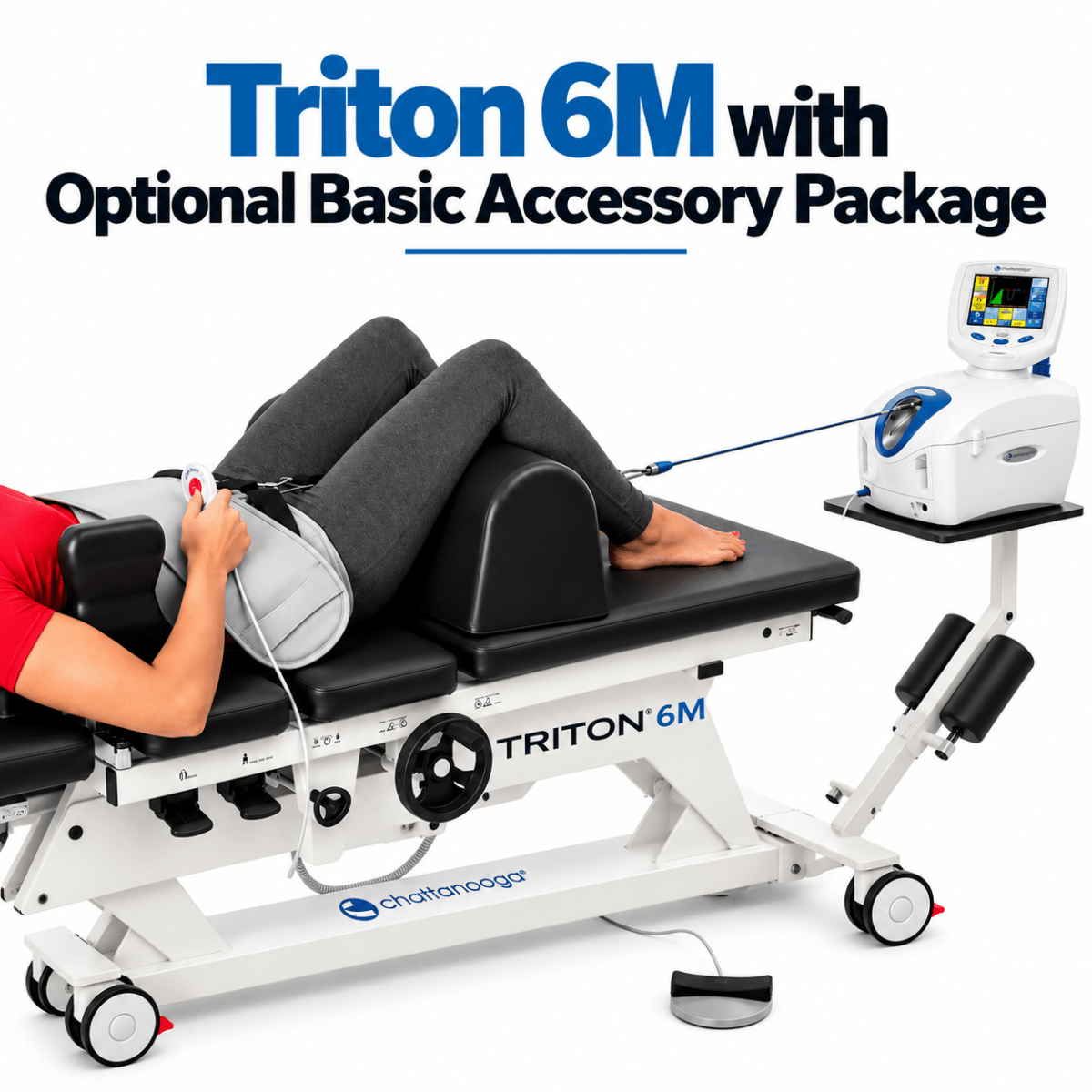

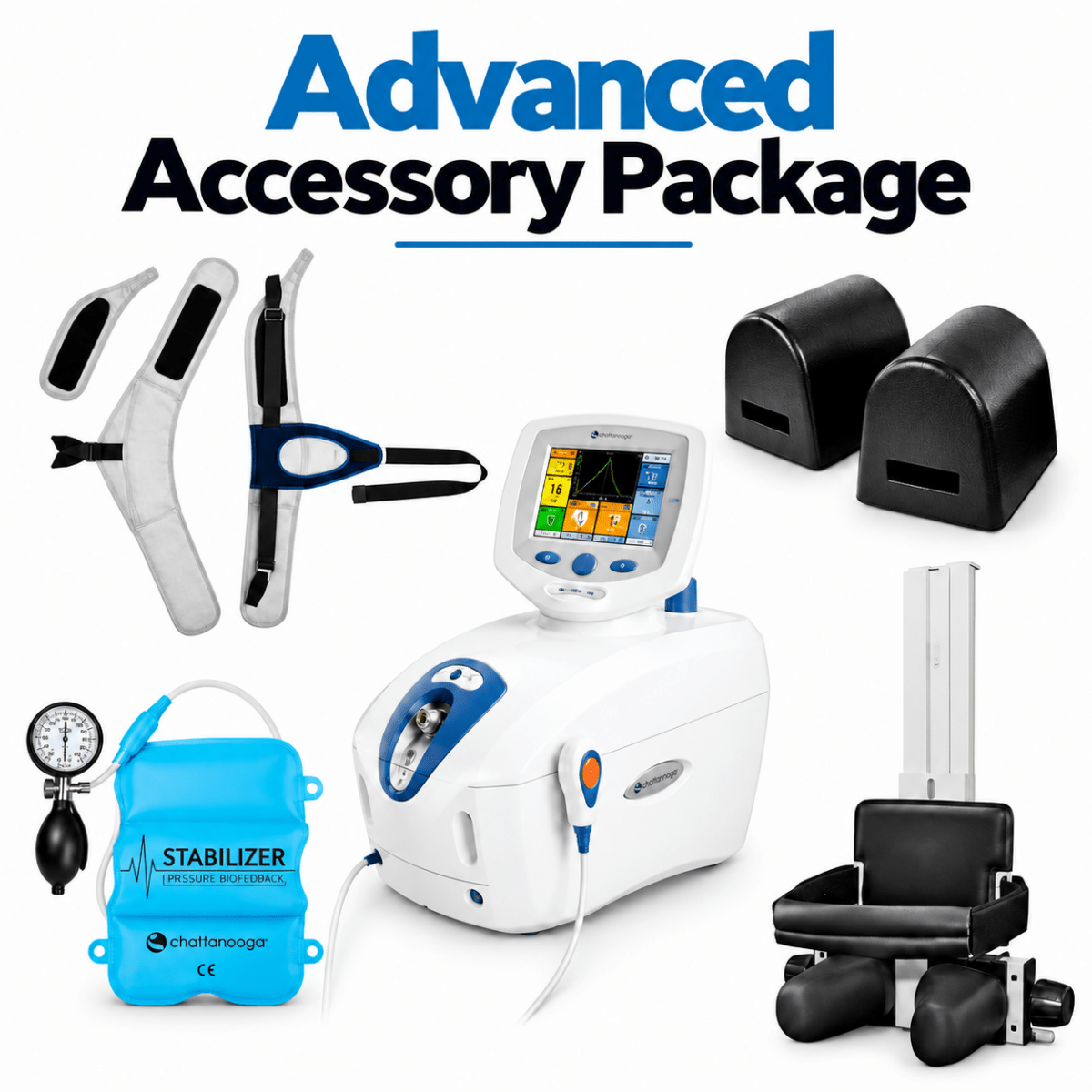

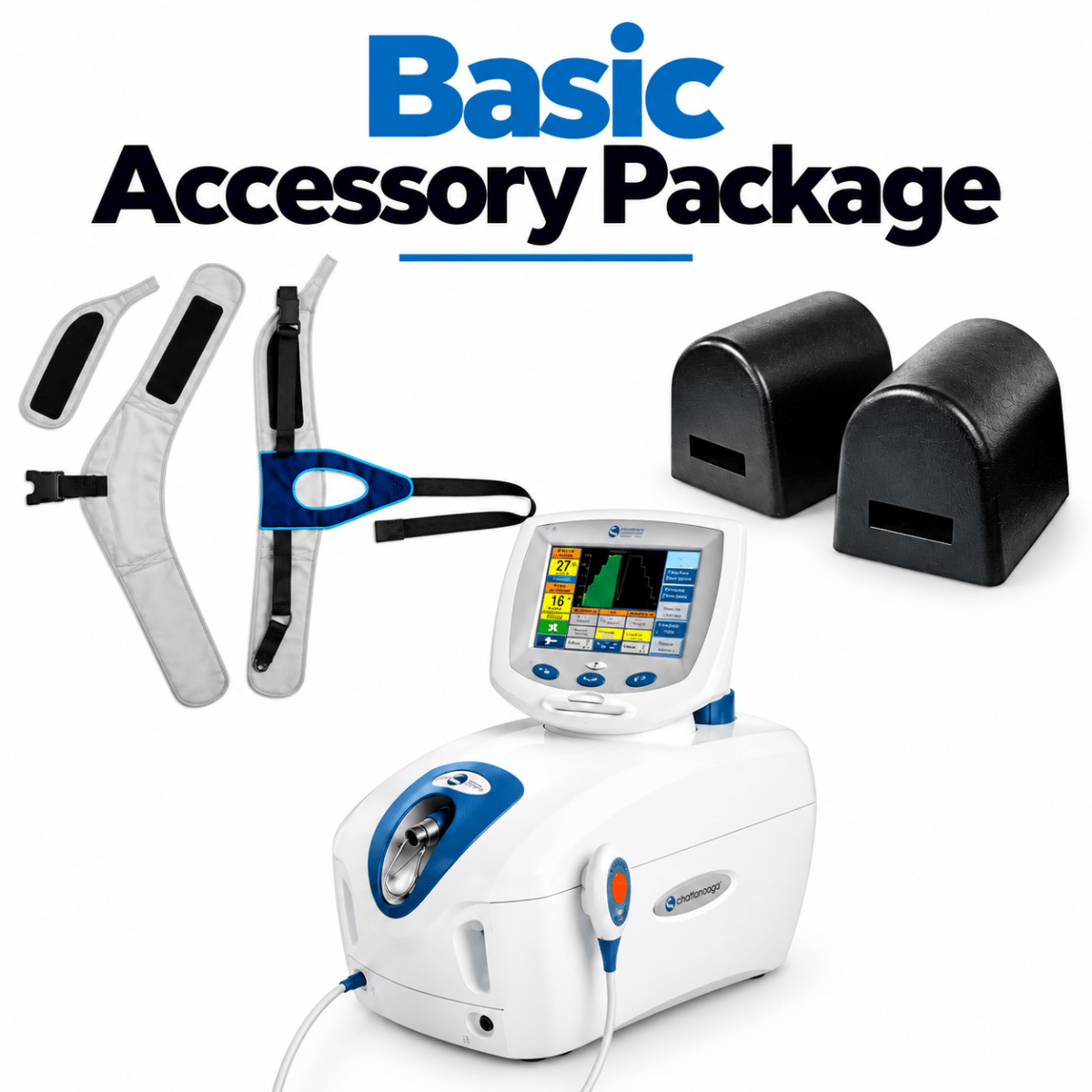

- ADD Triton DTS Advanced or Basic Accessory Packages (#8250, #8245)listed separately.
Technical Specifications |
||
Mains Power: |
120 V~ 50/60 Hz |
|
Current: |
Max 2A with 120V |
|
Dimensions: |
Total* |
90.5 x 37 x 31 inches |
Head / back section |
28 inches |
|
Middle section |
8.6 inches |
|
Pelvic section |
10 inches |
|
Leg section |
30 inches |
|
Width |
27.5 inches |
|
Adjustment: |
Height |
19 inches 37 inches |
|
Head Section -15° to +40° |
|
Angle Inclination |
Pelvic Section 0° to 15° |
|
|
Leg Section 0° to 45° |
|
Displacement |
Leg Section 4 inches |
|
Dynamic lifting capacity: |
440 LBs |
|
Maximum workload: |
605 LBs |
|
Patient Weight: |
363 LBs |
|
Electrical Safety Class: |
Class I, Type B |
|
Safety Tests: |
CE, Class I Rule 12 |
|
Table Weight: |
428 LBs |
|
Average Shipping Weight: |
484 LBs |
|
Shipment Dimensions: |
92.5 x 37.4 x 31.5 inches |
|
* Dimensions are listed as L x W x H |
