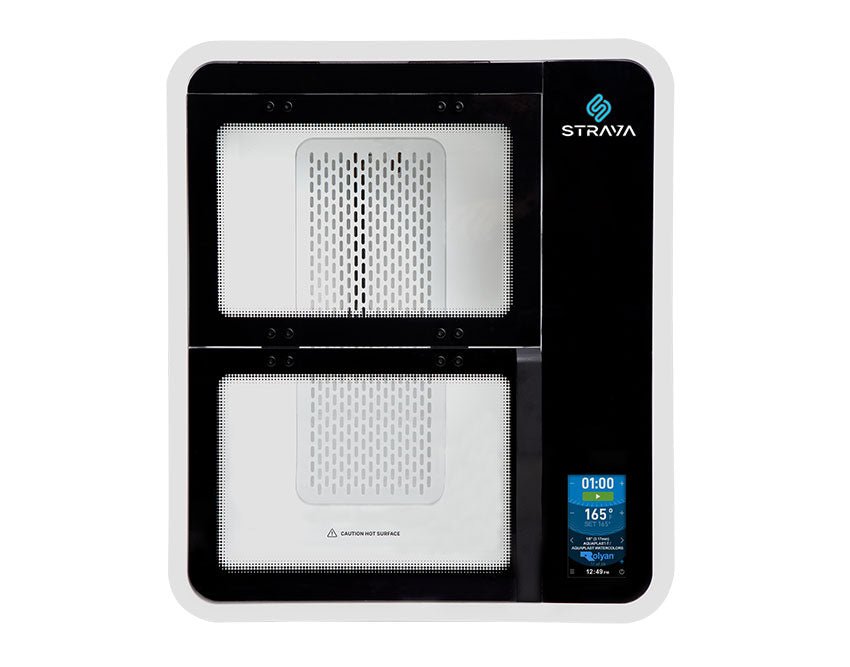

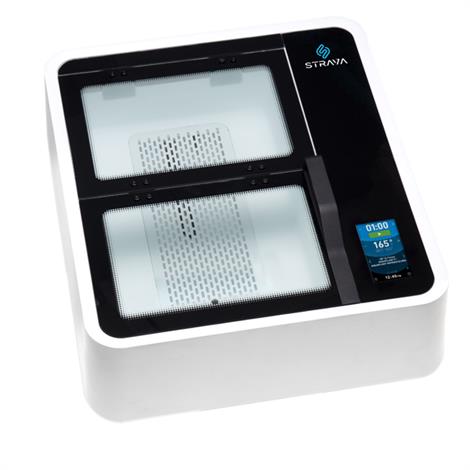

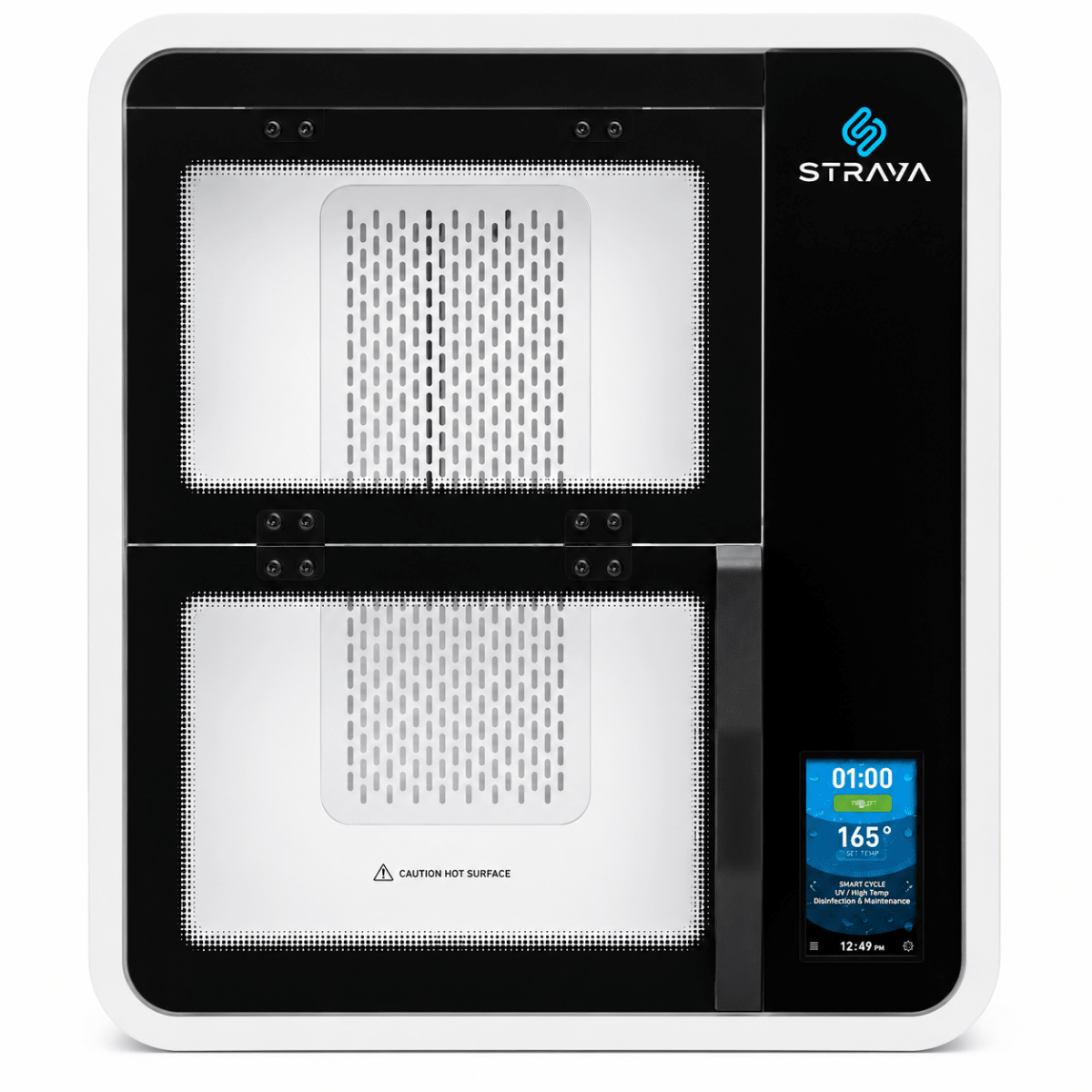

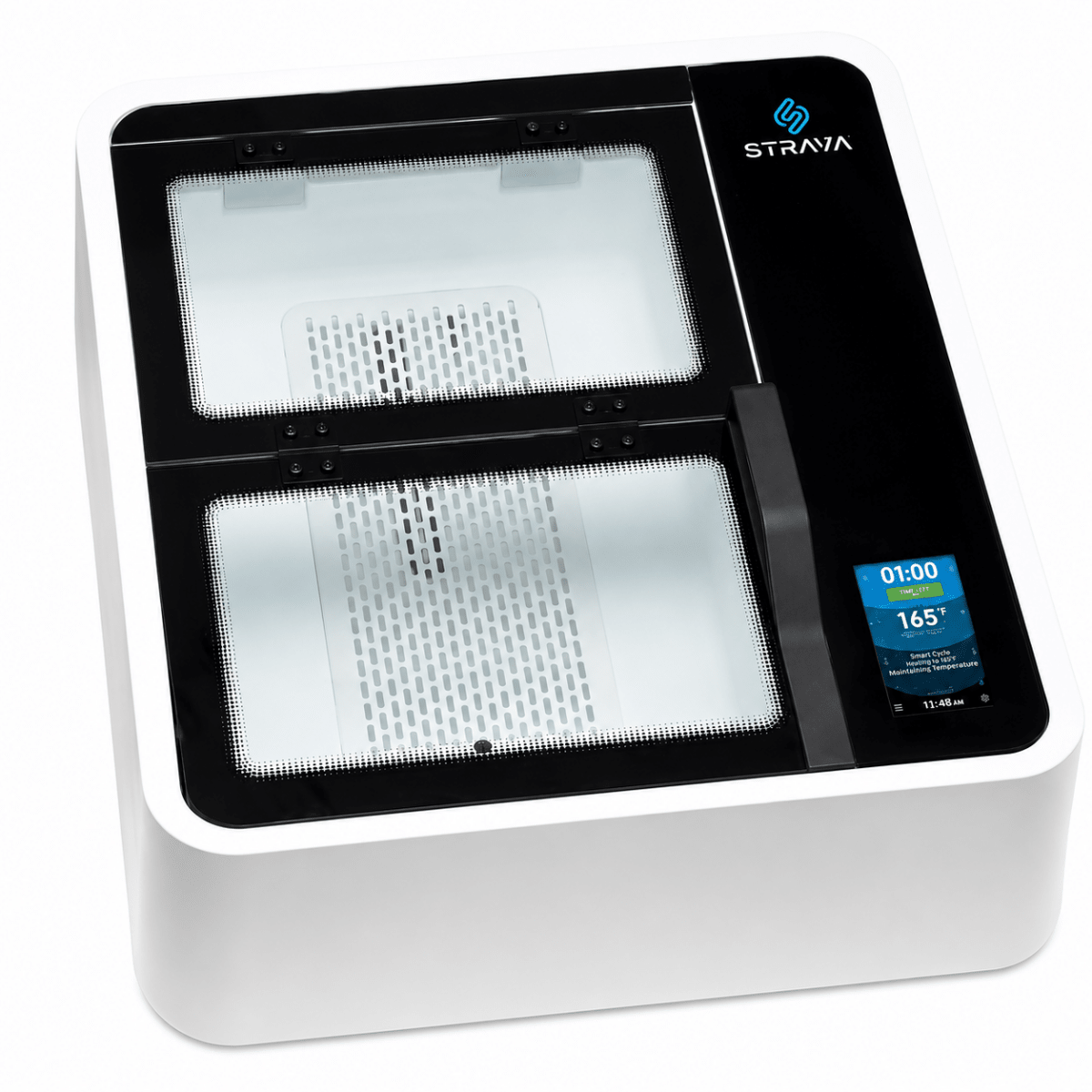

Strava SMART Splint Bath

The Strava SMART Splint Bath is an advanced thermoplastic heating system designed for occupational therapy, hand therapy, physical therapy, hospitals, rehabilitation clinics, and other healthcare environments. It combines fast, uniform heating with precise digital controls and two built-in disinfection methods to help clinicians prepare thermoplastic splinting materials while supporting a cleaner clinical workflow.

Unlike conventional splint pans that rely on basic heating elements and manual controls, the Strava SMART uses an internal heat exchanger, circulating water, digital temperature monitoring, thermoplastic presets, automatic scheduling, two-stage filtration, UV-C treatment, and a high-heat sanitation cycle.

Key features include:

• UV-C germicidal treatment
• High-heat sanitation cycle
• 99.9% kill rate of introduced microorganisms
• Fast and uniform water heating
• Digital touchscreen interface
• Thermoplastic material presets
• Custom time and temperature settings
• Automatic on and off scheduling
• Two-stage water filtration
• Real-time temperature display
• Visual timer with audible and visual alerts
• Low-water safety sensor
• Bi-fold stainless-steel lid
• Rapid water evacuation

Advanced Splint Bath for Thermoplastic Fabrication

The Strava SMART Splint Bath is designed to simplify the process of heating low-temperature thermoplastic materials used in custom splint fabrication. Its digital interface allows clinicians to set and monitor water temperature and treatment time without relying on imprecise mechanical controls.

Recommended time and temperature settings for commonly used thermoplastic materials can be selected from the touchscreen. Clinicians can also create customized settings based on their preferred splinting materials and clinical workflow.

This combination of presets, customizable controls, and real-time feedback helps reduce guesswork when preparing thermoplastic sheets for molding.

Dual Disinfection System

The Strava SMART features two integrated methods of water disinfection to help reduce microbial contamination between uses. These systems are built directly into the splint bath and are not available on the Strava BASIC model.

UV-C Germicidal Treatment

Water circulates through an ultraviolet-C treatment system operating at a germicidal wavelength. The recirculation process exposes the water to UV-C light as it moves through the system, helping reduce introduced microorganisms.

High-Heat Sanitation Cycle

The high-heat sanitation cycle raises the water temperature to approximately 185 degrees Fahrenheit to help kill microbes. Together, the UV-C system and high-heat cycle provide a reported 99.9% kill rate of introduced microorganisms.

These integrated sanitation features help healthcare facilities maintain a more consistent splint-bath cleaning process. Facilities should continue to follow the manufacturer's operating instructions and their own infection-control policies.

Fast and Uniform Heating

The Strava SMART uses an internal heat exchanger immersed in the circulating-water basin. This design promotes even heat distribution while minimizing the hot spots, cold spots, and thermal lag that can occur with conventional externally heated splint pans.

The system can bring cold water to the selected thermoplastic working temperature in approximately 25 minutes. Its internal temperature controls monitor water temperature in real time and maintain the selected setting within approximately plus or minus 2 degrees Fahrenheit.

Consistent water temperature can help clinicians prepare thermoplastic materials more predictably throughout the workday.

Digital Touchscreen Controls

The digital touchscreen interface provides direct access to the Strava SMART's heating, timing, scheduling, sanitation, and preset functions. Clinicians can view current water temperature, select a target temperature, set a timer, and adjust parameters as needed.

Touchscreen functions include:

• Real-time water temperature display
• Visual countdown timer
• Audible and visual alerts
• Preset thermoplastic settings
• Custom user-selected time and temperature settings
• Automatic preheating schedules
• Automatic shutoff scheduling
• Sanitation-cycle controls

Audible and visual alerts help clinicians monitor material-heating sessions while completing other tasks nearby.

Automatic On and Off Scheduling

The Strava SMART can automatically preheat its water to a selected temperature at a scheduled time and day. This allows the splint bath to be ready when the clinic opens without requiring staff to arrive early and manually begin the heating process.

Automatic shutoff scheduling can also help reduce unnecessary overnight operation when the equipment is not in use.

Thermoplastic Presets and Custom Settings

The Strava SMART includes recommended time and temperature presets for thermoplastic materials from leading manufacturers. Clinicians can select a preloaded setting or create custom parameters directly from the touchscreen.

These controls make the unit suitable for facilities that work with multiple thermoplastic brands, thicknesses, or preferred heating protocols.

Two-Stage Filtration and Water Circulation

A built-in circulation system continuously moves water through the Strava SMART's filtration and UV-C components. Two-stage filtration helps capture debris and contaminants before the water returns to the basin.

The circulation system also contributes to even water temperature throughout the tub, helping thermoplastic sheets heat consistently across their surface.

Bi-Fold Stainless-Steel Lid

The Strava SMART includes a fully retractable bi-fold stainless-steel lid. The lid provides access to the water basin from three sides and helps retain heat when the unit is closed.

Its folding design reduces the amount of vertical clearance required when open, allowing the splint bath to fit beneath many upper cabinets while making efficient use of countertop space.

Rapid Water Evacuation and Low-Water Protection

The Strava SMART includes a rapid water-evacuation system for easier draining. This eliminates the need to manually scoop or lift water from the basin during routine maintenance.

A built-in low-water sensor protects the unit by detecting insufficient water levels and stopping operation when necessary.

Strava SMART Splint Bath Specifications

• Product type: Digital thermoplastic splint bath
• Model: 100.600
• Internal tub dimensions: 12 inches wide by 19 inches long by 6 inches high
• External dimensions: 22.6 inches wide by 19.75 inches long by 10 inches high
• Total height with lid raised: Approximately 18.5 inches
• Water capacity: Approximately 5 gallons
• Heating time: Approximately 25 minutes
• Temperature accuracy: Approximately plus or minus 2 degrees Fahrenheit
• Disinfection: UV-C germicidal treatment and high-heat sanitation cycle
• Filtration: Two-stage filtration
• Controls: Digital touchscreen interface
• Lid: Retractable bi-fold stainless-steel lid
• Drainage: Rapid water-evacuation system
• Safety feature: Low-water sensor
• Compliance rating: IEC 61010-2
• Country of manufacture: Made in the USA

Dimensions and product features are based on current manufacturer information and are subject to change. Confirm installation space, electrical requirements, and current specifications before ordering.

Who Uses the Strava SMART Splint Bath?

The Strava SMART is designed for healthcare professionals and facilities that regularly fabricate custom thermoplastic splints and orthoses, including:

• Occupational therapists
• Certified hand therapists
• Physical therapists
• Hand therapy clinics
• Hospitals and rehabilitation departments
• Orthopedic and hand surgery practices
• Outpatient rehabilitation centers
• University and clinical education programs
• Pediatric therapy facilities

Why Choose the Strava SMART?

The Strava SMART combines thermoplastic heating, digital temperature control, automated scheduling, filtration, drainage, and water-disinfection functions in one compact clinical system.

It is especially well suited for busy hand therapy and occupational therapy environments that want:

• More accurate water-temperature control
• Consistent thermoplastic heating
• Faster preparation at the start of the day
• Preset and customizable material settings
• Integrated water-disinfection features
• Simplified draining and routine maintenance
• A modern digital interface

Why Buy the Strava SMART from Total Rehab Solutions?

Total Rehab Solutions supplies professional rehabilitation and therapy equipment to hospitals, occupational therapy clinics, physical therapy practices, universities, hand therapy centers, and other healthcare organizations.

Our team can help you confirm product specifications, review your facility's requirements, and obtain competitive pricing for specialty equipment and quantity orders.

For assistance with the Strava SMART Splint Bath, contact Total Rehab Solutions before placing your order.

Frequently Asked Questions

What is the Strava SMART Splint Bath used for?

The Strava SMART is used to heat and soften low-temperature thermoplastic sheets for custom splint and orthosis fabrication. It is designed for occupational therapy, hand therapy, physical therapy, orthopedic, and rehabilitation environments.

What is the difference between the Strava SMART and Strava BASIC?

The Strava SMART adds UV-C water treatment, a high-heat sanitation cycle, two-stage filtration, water circulation, thermoplastic presets, and additional programmable controls. The Strava BASIC provides digital heating and timing functions but does not include the SMART model's integrated dual-disinfection system.

How does the Strava SMART disinfect the water?

The Strava SMART uses two built-in disinfection methods. Water circulates through a UV-C germicidal treatment system, and a separate high-heat sanitation cycle raises the water temperature to approximately 185 degrees Fahrenheit.

Does the Strava SMART kill bacteria?

The manufacturer reports that the combined disinfection system kills 99.9% of introduced microorganisms. Healthcare facilities should still follow the manufacturer's maintenance instructions and their own infection-control procedures.

How long does the Strava SMART take to heat?

The Strava SMART reaches the selected thermoplastic water temperature in approximately 25 minutes, depending on the starting water temperature and operating conditions.

Does the Strava SMART include thermoplastic presets?

Yes. The touchscreen includes recommended time and temperature presets for commonly used thermoplastic materials. Clinicians can also create custom settings.

Can the Strava SMART turn on automatically?

Yes. The automatic scheduling function can preheat the water to a selected temperature at a specified time and day. Automatic shutoff can also be scheduled.

How accurate is the Strava SMART temperature control?

The internal temperature-control system monitors the water in real time and maintains the selected temperature within approximately plus or minus 2 degrees Fahrenheit.

How is the Strava SMART drained?

The unit includes a rapid water-evacuation system that pumps water from the basin, simplifying routine draining and maintenance.

What are the dimensions of the Strava SMART Splint Bath?

The external dimensions are approximately 22.6 inches wide by 19.75 inches long by 10 inches high. The internal basin measures approximately 12 inches wide by 19 inches long by 6 inches high.

Does the Strava SMART fit beneath wall cabinets?

The fully retractable bi-fold lid is designed to reduce the vertical space required when opened. The total unit height with the lid fully raised is approximately 18.5 inches, but facilities should measure their available countertop and cabinet clearance before ordering.

Is the Strava SMART made in the USA?

Yes. The Strava SMART Splint Bath is made in the United States.
