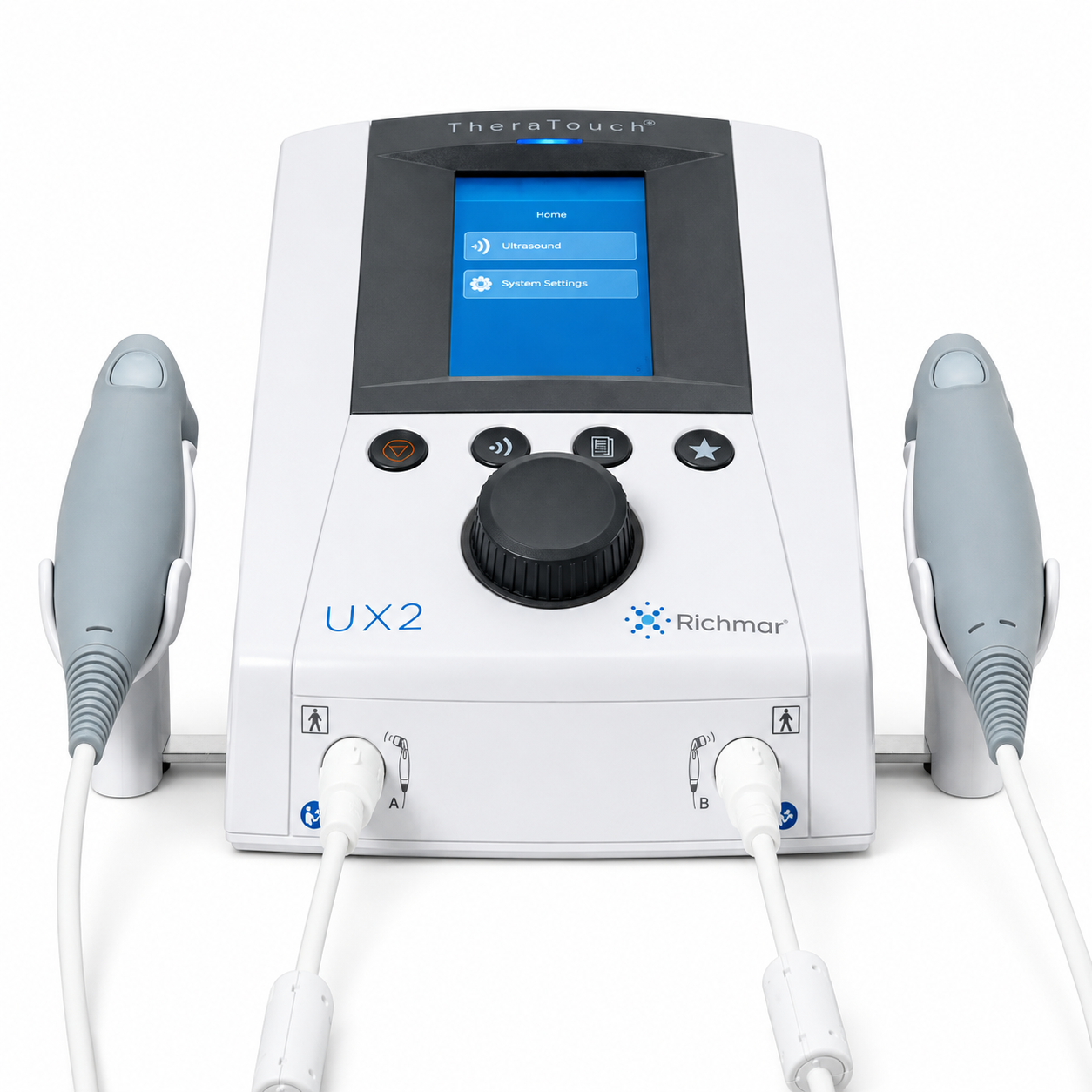

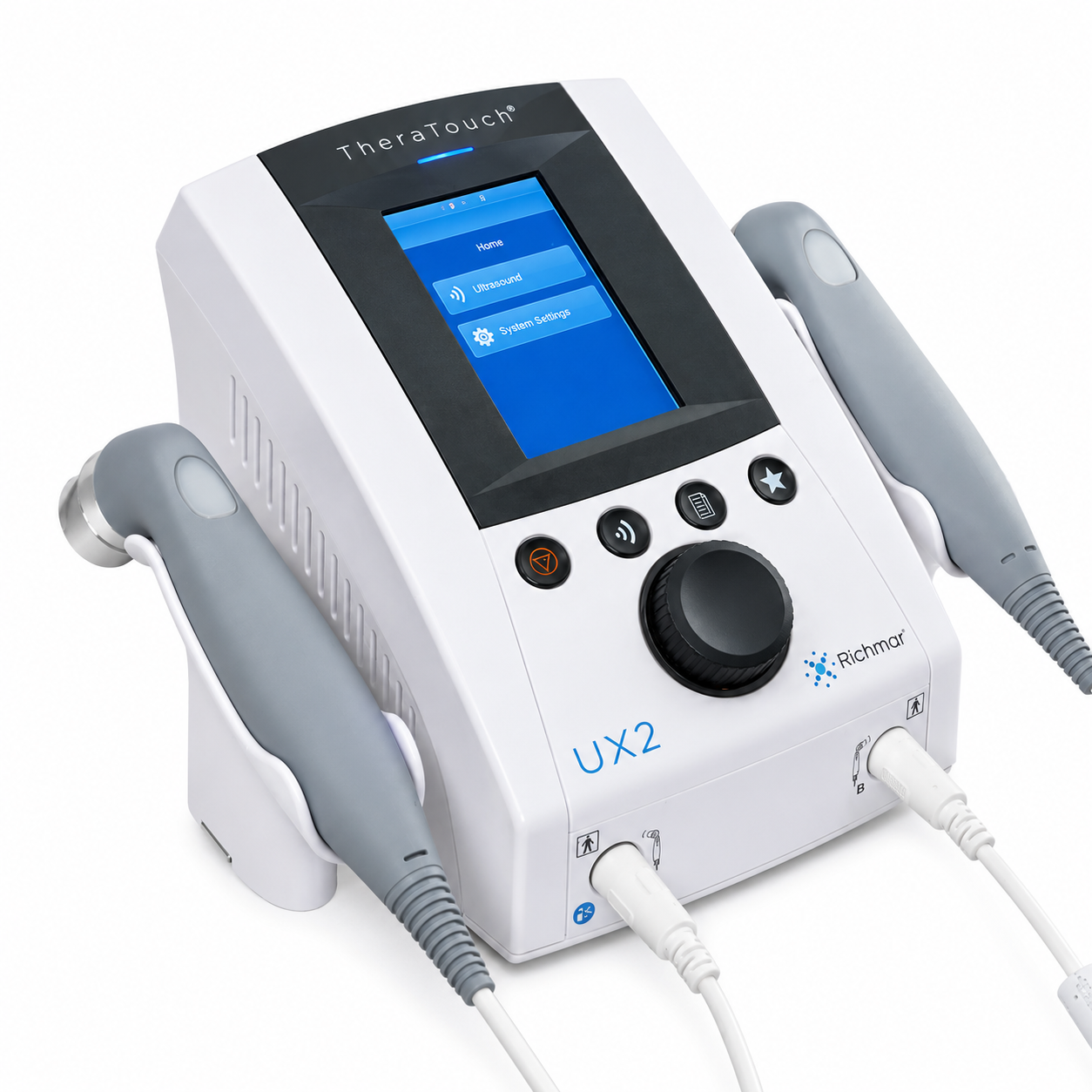

Richmar TheraTouch UX2 Advanced Ultrasound Therapy Device

The Richmar TheraTouch UX2 Advanced Ultrasound Therapy Device is a professional therapeutic ultrasound system designed to simplify treatment setup for physical therapy, rehabilitation, sports medicine, and other clinical environments. Featuring a large color touchscreen, evidence-based clinical protocols, dual ultrasound frequencies, and customizable treatment programs, the UX2 combines advanced functionality with an intuitive clinical workflow.

The TheraTouch UX2 provides both 1 MHz and 3 MHz therapeutic ultrasound frequencies along with pulsed and continuous treatment modes. Its menu-driven interface guides clinicians through treatment setup with appropriate parameter settings and ultrasound applicator recommendations, while the built-in clinical library provides treatment education for a variety of acute and chronic conditions.

With both 1 cm² and 5 cm² ultrasound applicators, a low 5:1 BNR ratio, sound head coupling feedback, and storage for up to 99 custom programs, the Richmar UX2 gives rehabilitation professionals a versatile therapeutic ultrasound machine for everyday clinical use.

Advanced Therapeutic Ultrasound Made Simple

The Richmar TheraTouch UX2 is designed to make professional ultrasound therapy easier to set up and deliver. Its menu-driven color touchscreen intuitively groups and displays clinical protocols, guiding clinicians step-by-step through treatment setup.

Appropriate treatment parameters and ultrasound applicator recommendations are presented through the interface, helping streamline treatment selection. Clinicians can quickly begin treatment using preset protocols or manually adjust parameters to meet individual treatment needs.

The UX2 also includes a comprehensive clinical library with treatment education, providing an additional resource directly within the ultrasound system.

Richmar TheraTouch UX2 Features

• Professional therapeutic ultrasound device for clinical rehabilitation
• 1 MHz and 3 MHz ultrasound frequencies
• Pulsed and continuous ultrasound modes
• Large, easy-to-read color LCD touchscreen
• Menu-driven interface guides clinicians through treatment setup
• Clinical protocols for a variety of acute and chronic conditions
• Comprehensive clinical library provides treatment education
• Preset protocols or customizable treatment parameters
• Favorites feature stores up to 99 custom programs
• Includes 1 cm² and 5 cm² ultrasound applicators
• Dual-holster design accommodates both applicator sizes
• Low 5:1 Beam Nonuniformity Ratio (BNR)
• Ultrasound amplitude can be displayed in W or W/cm²
• Sound head coupling feature
• Ergonomically designed ultrasound sound heads
• Designed for tabletop or therapy cart use
• Optional Richmar TheraTouch Therapy Cart available

1 MHz and 3 MHz Therapeutic Ultrasound

The TheraTouch UX2 provides clinicians with both 1 MHz and 3 MHz ultrasound frequencies from a single clinical ultrasound therapy system.

Ultrasound frequency affects the depth at which ultrasound energy is delivered. The UX2's dual-frequency capability gives rehabilitation professionals greater flexibility when selecting ultrasound parameters according to the treatment area and clinical objective.

Both pulsed and continuous modes are available, allowing clinicians to further customize therapeutic ultrasound delivery according to the selected treatment protocol.

1 cm² and 5 cm² Ultrasound Applicators

The Richmar TheraTouch UX2 is designed to accommodate 1 cm² and 5 cm² ultrasound applicators, giving clinicians different sound head sizes for different treatment areas.

The smaller 1 cm² applicator provides a practical option for localized or smaller treatment areas, while the 5 cm² applicator provides a larger treatment surface for broader areas.

A dual-holster design keeps both applicators conveniently positioned with the UX2, helping clinicians transition between applicator sizes while maintaining an organized treatment area.

Low 5:1 BNR for Consistent Ultrasound Delivery

The TheraTouch UX2 features a low Beam Nonuniformity Ratio (BNR) of 5:1. BNR describes the relationship between peak ultrasound intensity and the average intensity across the sound head's Effective Radiating Area (ERA).

The ergonomically designed ultrasound sound heads are engineered to provide an excellent Effective Radiating Area, supporting consistent therapeutic ultrasound delivery during clinical treatments.

Sound Head Coupling Feedback

Proper coupling between an ultrasound applicator and the treatment area is an important part of therapeutic ultrasound delivery. The TheraTouch UX2 includes a sound head coupling feature to assist clinicians during treatment.

This feature complements the UX2's guided clinical workflow by providing additional feedback while ultrasound therapy is being delivered.

Clinical Protocols and Treatment Education

The UX2 includes clinical protocols designed to provide treatment parameters for a variety of acute and chronic conditions. Rather than requiring clinicians to establish every parameter from the beginning, the system can guide treatment setup using its menu-driven interface.

The comprehensive clinical library also provides treatment education directly through the UX2 interface, making relevant information readily available during treatment setup.

For clinicians who prefer customized treatment parameters, settings can be manually selected and adjusted as needed.

Save Up to 99 Custom Treatment Programs

Frequently used treatment settings can be saved using the UX2's Favorites feature. The system can store up to 99 user-defined programs for future use.

This allows clinicians to quickly access commonly used ultrasound settings while retaining the flexibility to adjust parameters for individual treatment requirements.

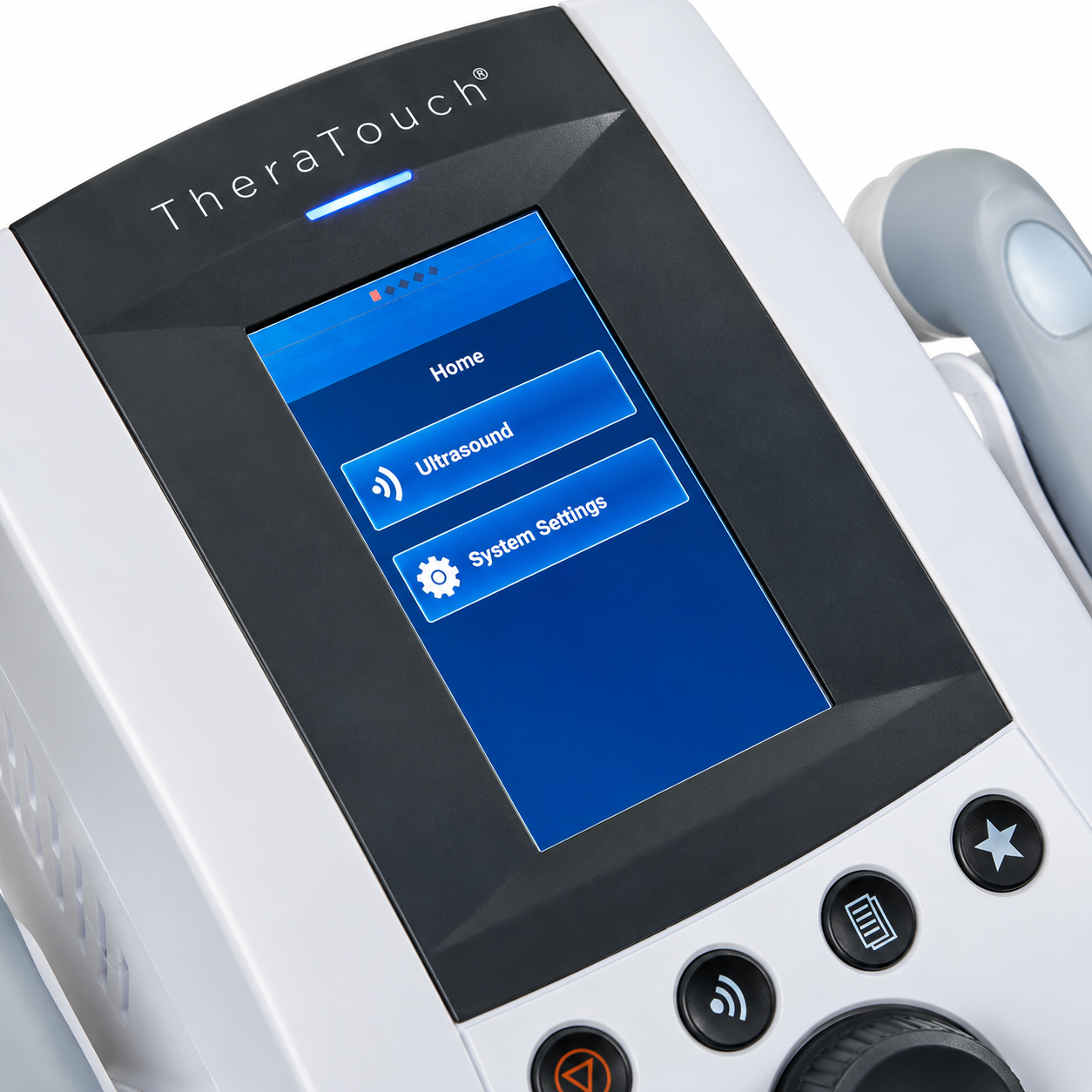

Color Touchscreen Interface

The Richmar TheraTouch UX2 features a large, easy-to-read color LCD touchscreen designed for straightforward operation in busy clinical environments.

A few simple selections can be used to begin treatment, while parameters remain easily accessible for adjustment. The interface combines protocol selection, treatment education, applicator recommendations, and customizable settings within one streamlined system.

Richmar TheraTouch UX2 Technical Specifications

• Manufacturer: Richmar
• Product: TheraTouch UX2 Advanced Ultrasound Therapy Device
• Order Number: DQ2000
• Ultrasound Frequencies: 1 MHz and 3 MHz
• Duty Cycles: Pulsed and Continuous
• Pulse Frequency: 100 Hz
• Pulse Duration: 1-9 mSec ±10%, set by duty cycle
• Ramp: 1 second, fixed
• Treatment Time: 1-60 minutes
• Beam Nonuniformity Ratio: 5:1
• Amplitude Display: W or W/cm²
• Custom Program Storage: Up to 99 programs
• Power Supply: 100-240 VAC, 50-60 Hz
• Dimensions: 11.25" x 7.75" x 9.5"
• Weight: 5 lbs.

What's Included with the TheraTouch UX2?

• Richmar TheraTouch UX2 Advanced Ultrasound Therapy Device (DQ2000)
• 1 cm² ultrasound applicator
• 5 cm² ultrasound applicator
• Ultrasound applicator holsters
• Medical-grade power cord
• TheraSonic conductive ultrasound gel

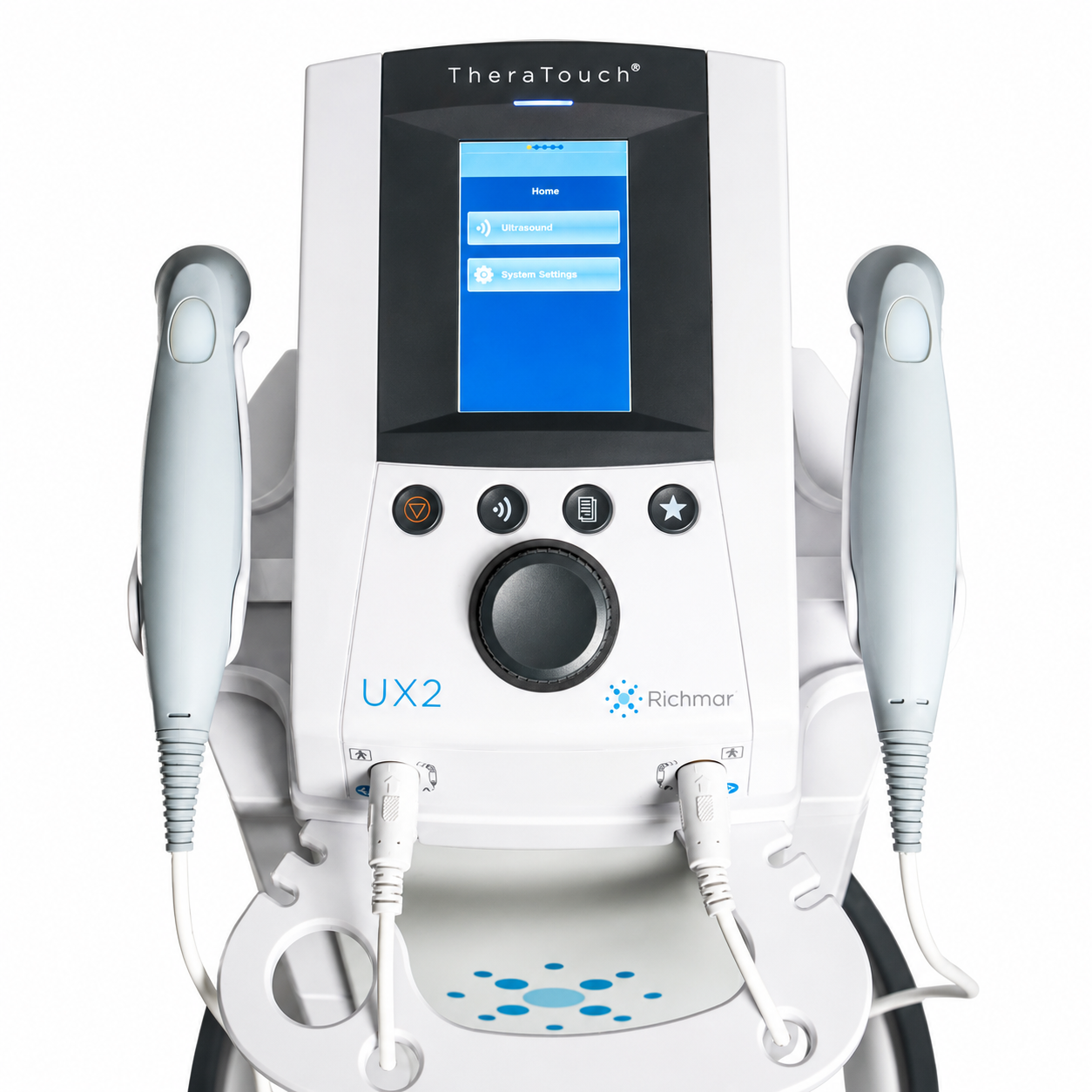

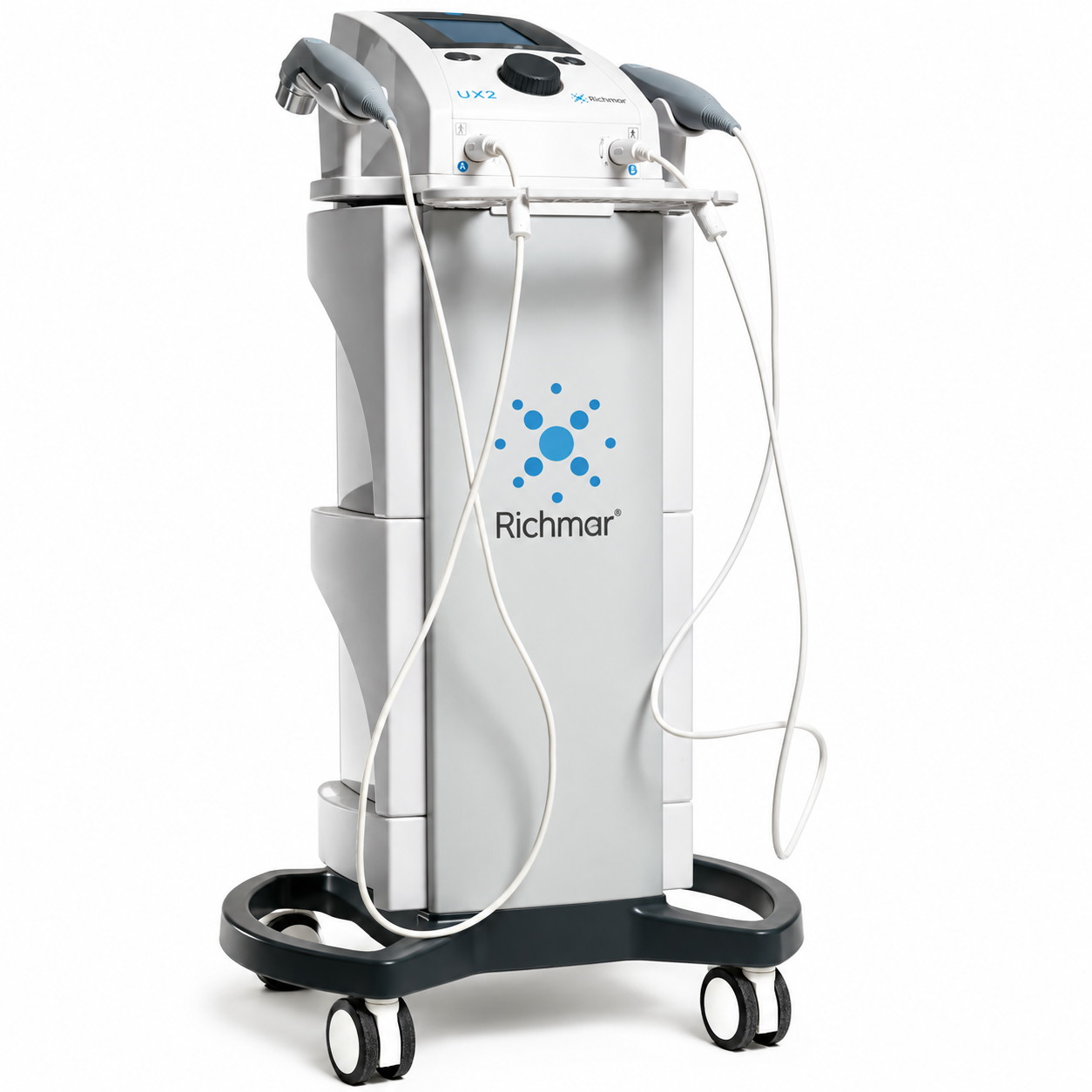

Optional Richmar TheraTouch Therapy Cart

The Richmar TheraTouch Therapy Cart is available separately for clinics that want a dedicated mobile treatment station for the UX2. The cart provides integrated storage for ultrasound gel, sound heads, and other clinical supplies while making it easier to move the ultrasound system between treatment rooms.

The cart's compact mobile design is especially useful in physical therapy and rehabilitation facilities where a single ultrasound therapy device may be used across multiple treatment areas.

Designed for Physical Therapy and Rehabilitation

The Richmar TheraTouch UX2 combines dual-frequency therapeutic ultrasound, guided clinical protocols, customizable programs, multiple applicator sizes, and an intuitive touchscreen interface in a compact clinical system.

It is well suited for professional environments including:

• Physical therapy clinics
• Rehabilitation facilities
• Sports medicine clinics
• Athletic training rooms
• Chiropractic practices
• Orthopedic rehabilitation centers
• Hospital and outpatient rehabilitation departments

For clinics looking for a professional physical therapy ultrasound machine with both 1 MHz and 3 MHz frequencies, the TheraTouch UX2 provides an advanced, flexible platform designed for efficient clinical ultrasound therapy.

Frequently Asked Questions About the TheraTouch UX2

What is the Richmar TheraTouch UX2?

The Richmar TheraTouch UX2 is a professional therapeutic ultrasound device designed for physical therapy and rehabilitation. It provides 1 MHz and 3 MHz ultrasound frequencies, pulsed and continuous modes, clinical protocols, customizable programs, and a color touchscreen interface.

Does the TheraTouch UX2 provide both 1 MHz and 3 MHz ultrasound?

Yes. The UX2 provides both 1 MHz and 3 MHz therapeutic ultrasound frequencies from a single clinical device, giving clinicians flexibility when selecting treatment parameters for different treatment areas and objectives.

What ultrasound applicators come with the TheraTouch UX2?

The TheraTouch UX2 is offered with 1 cm² and 5 cm² ultrasound applicators, providing clinicians with different sound head sizes for smaller and larger treatment areas.

Does the UX2 provide pulsed and continuous ultrasound?

Yes. The Richmar TheraTouch UX2 supports both pulsed and continuous therapeutic ultrasound modes.

Can custom treatment programs be saved on the TheraTouch UX2?

Yes. The Favorites feature allows clinicians to save up to 99 user-defined treatment programs for quick access to frequently used settings.

What is the BNR of the TheraTouch UX2?

The TheraTouch UX2 has a low Beam Nonuniformity Ratio (BNR) of 5:1.

Does the TheraTouch UX2 have a coupling indicator?

The UX2 includes a sound head coupling feature designed to provide clinicians with feedback related to ultrasound coupling during treatment.

Can the TheraTouch UX2 be used with a therapy cart?

Yes. The Richmar TheraTouch Therapy Cart is compatible with the UX2 and is available separately for clinics that want a dedicated mobile treatment station with additional equipment storage.
