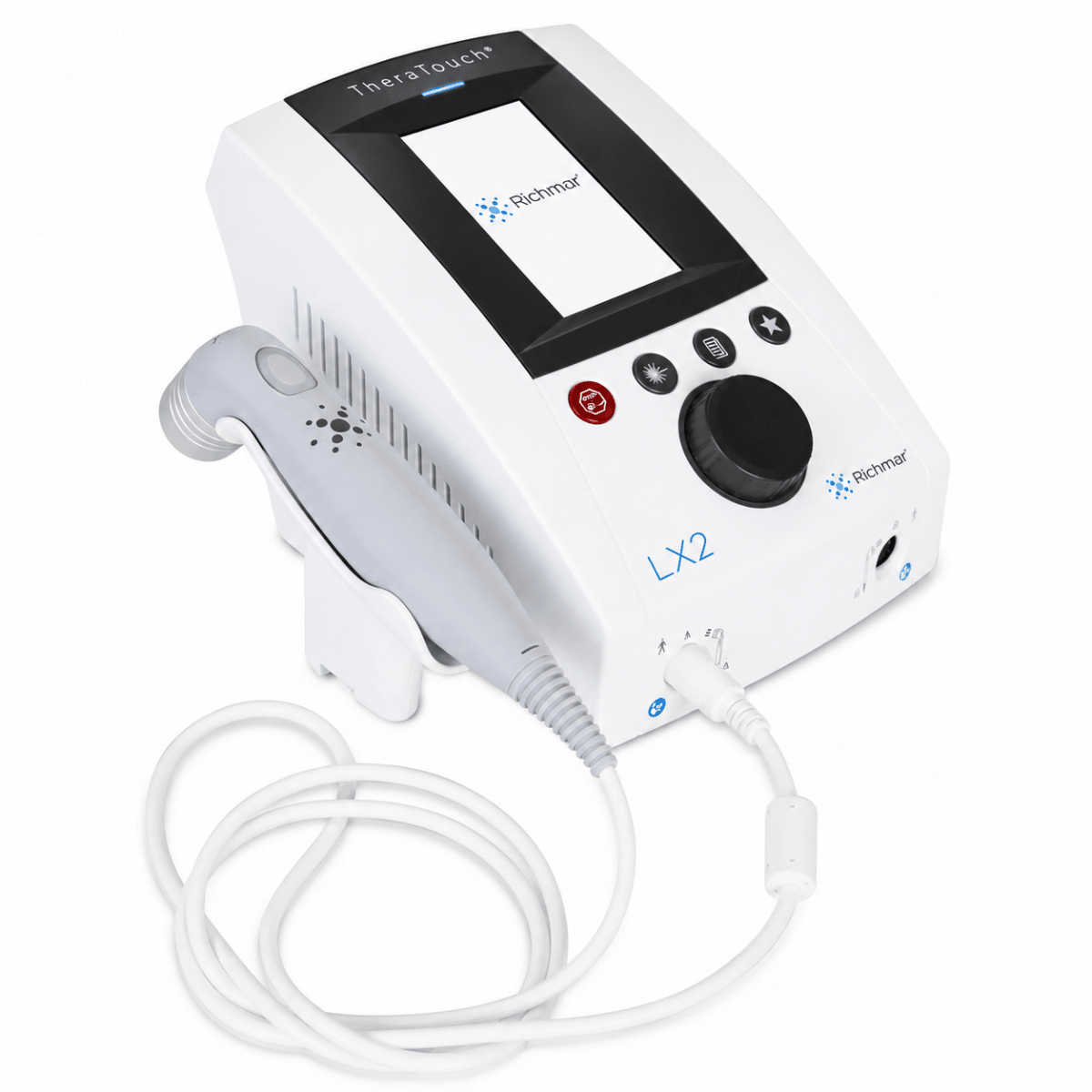

Richmar TheraTouch LX2 Class IIIb Laser Therapy Device

The Richmar TheraTouch LX2 is a Class IIIb cold laser therapy device designed to simplify photobiomodulation and low-level laser therapy (LLLT) in physical therapy, rehabilitation, sports medicine, athletic training, chiropractic, and other clinical environments. Combining evidence-based clinical protocols with an intuitive full-color touchscreen, the TheraTouch LX2 helps clinicians efficiently set up treatments for common acute and chronic conditions.

Capable of delivering up to 35 J/cm² in a single treatment, the LX2 provides flexible treatment options for applications including tissue healing, inflammation, and pain. The system comes standard with a powerful 9 Diode Cluster Applicator combining 650 nm LED and 850 nm infrared laser wavelengths. An optional 850 nm Single Diode Applicator can also be added for more focused treatment applications.

The Richmar TheraTouch LX2 also features a built-in dosage calculator, continuous and pulsed output modes, two output channels, predefined clinical protocols, and storage for up to 100 user-defined protocols.

Evidence-Based Laser Therapy Made Simple

The TheraTouch LX2 was developed to make professional laser therapy easier to integrate into clinical treatment programs without sacrificing flexibility. Its combination of evidence-based protocols and guided treatment setup makes the system approachable for clinicians introducing laser therapy into their practice, while adjustable treatment parameters provide experienced users with greater control over treatment delivery.

Evidence-based clinical protocols help populate treatment parameters for the selected indication, including a dedicated Tissue Healing protocol. The menu-driven touchscreen guides clinicians through treatment setup in a straightforward and logical sequence, helping simplify operation in busy clinical environments.

See the Richmar TheraTouch LX2 in Action

Richmar TheraTouch LX2 Features

• Class IIIb cold laser therapy device for professional clinical use
• Designed for photobiomodulation and low-level laser therapy (LLLT)
• Delivers up to 35 J/cm² in a single treatment
• Includes a 9 Diode Cluster Applicator as standard equipment
• Full-color touchscreen with menu-driven treatment setup
• 10 predefined clinical protocols
• Save up to 100 user-defined protocols
• Built-in dosage calculator with real-time calculations
• Displays dosage in Joules, J/cm², and J/diode
• Programmable treatment time up to 4 minutes
• Continuous or pulsed output modes
• Two output channels
• Evidence-based Tissue Healing protocol
• Optional 850 nm Single Diode Applicator available
• Optional Richmar Therapy Cart available for convenient transport and organization
• Backed by Richmar's 3-year warranty

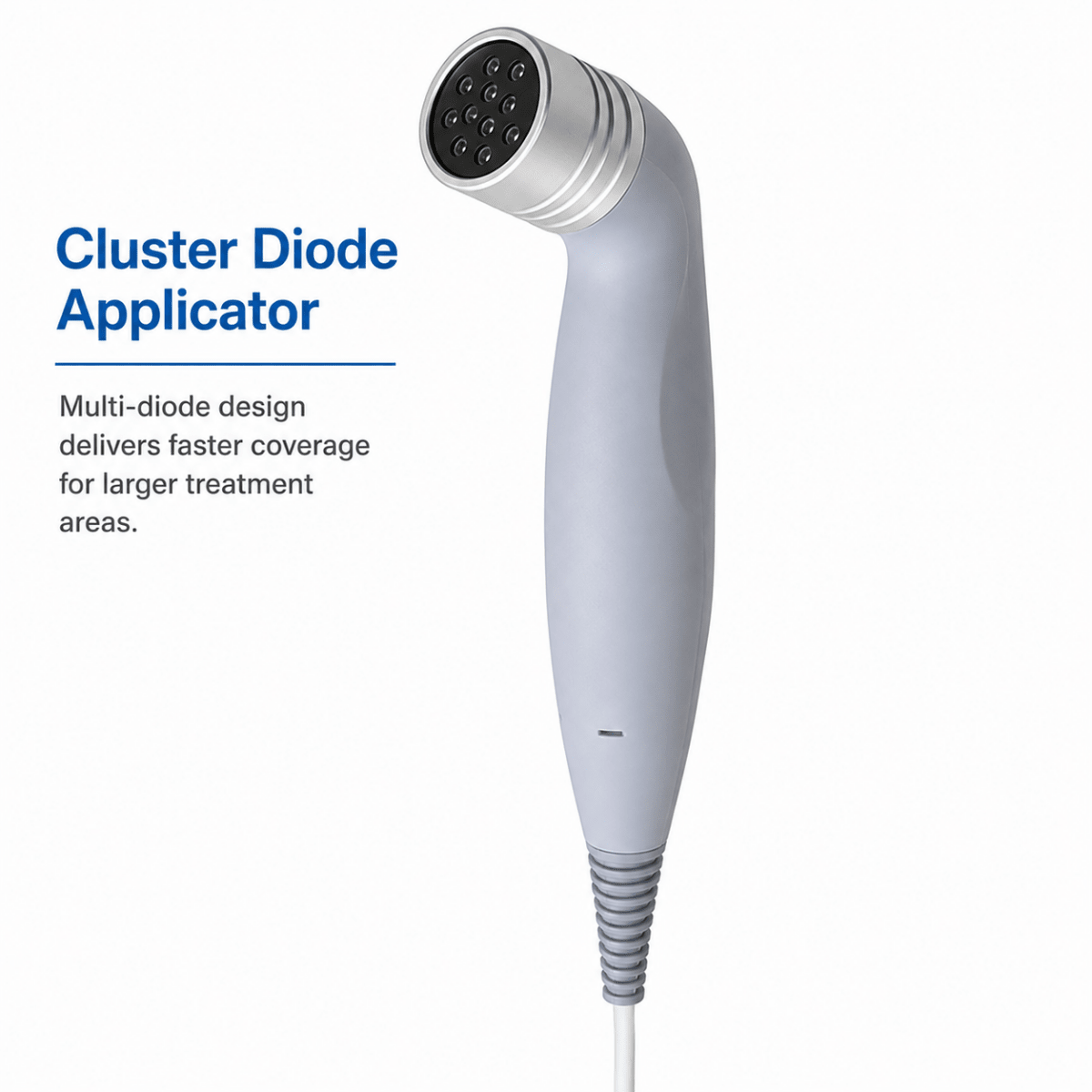

9 Diode Cluster Applicator Included

The Richmar TheraTouch LX2 comes standard with a 9 Diode Cluster Applicator designed to deliver laser and LED energy across the treatment area. The applicator combines four 650 nm LED diodes with five higher-powered 850 nm infrared laser diodes for a total power output of 1040 mW.

• Four 650 nm LED diodes: 10 mW each
• Five 850 nm infrared laser diodes: 200 mW each
• Total power: 1040 mW
• Richmar part number: DQLLLT-CA
• Included standard with the TheraTouch LX2

The combination of multiple diodes and wavelengths provides clinicians with a versatile applicator for delivering therapeutic laser treatments across a broader treatment area.

A replacement Richmar TheraTouch LX2 9 Diode Cluster Applicator is also available separately for existing LX2 systems that need a replacement applicator.

Photobiomodulation for Tissue Healing

Photobiomodulation uses light energy to influence biological processes within tissue. During laser therapy, light energy is absorbed by cellular chromophores, including cytochrome c oxidase within the mitochondria, helping influence cellular activity associated with tissue repair and healing.

According to Richmar, this interaction can affect important cellular molecules including adenosine triphosphate (ATP), reactive oxygen species (ROS), and nitric oxide (NO). These processes are associated with cellular energy production, circulation, inflammation, and tissue repair.

Richmar identifies physiologic effects of photobiomodulation throughout multiple stages of tissue healing:

• Inflammatory Phase: Provides a nonpharmacologic anti-inflammatory and analgesic therapeutic modality that can help inhibit the inflammatory response.
• Proliferative Phase: Supports tissue healing through increased fibroblastic activity associated with collagen synthesis and deposition.
• Maturation Phase: May contribute to a shortened healing timeframe, with treated tissues demonstrating greater tensile strength.

This makes the TheraTouch LX2 a versatile therapeutic laser system for rehabilitation professionals incorporating photobiomodulation into treatment programs focused on tissue healing, inflammation, and pain.

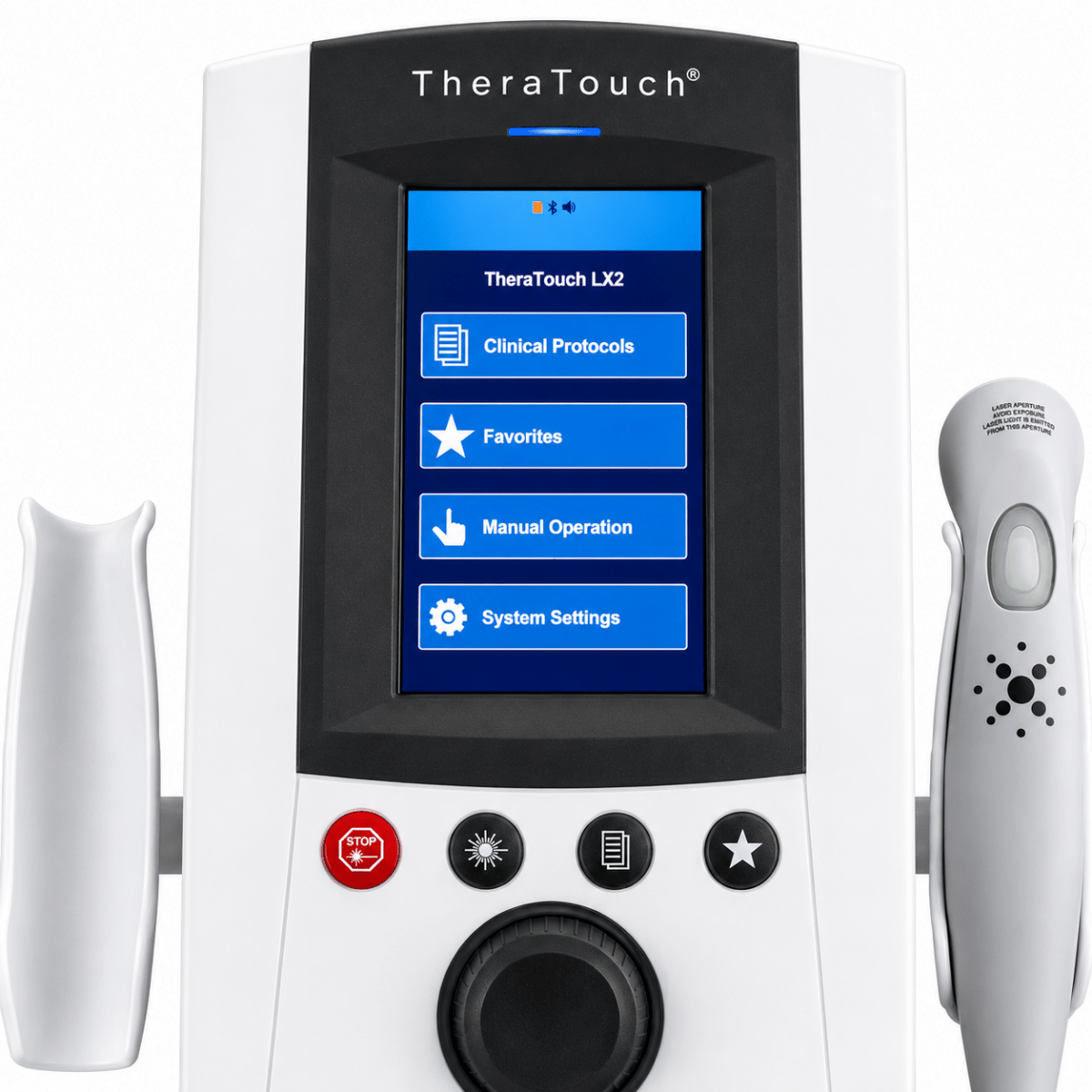

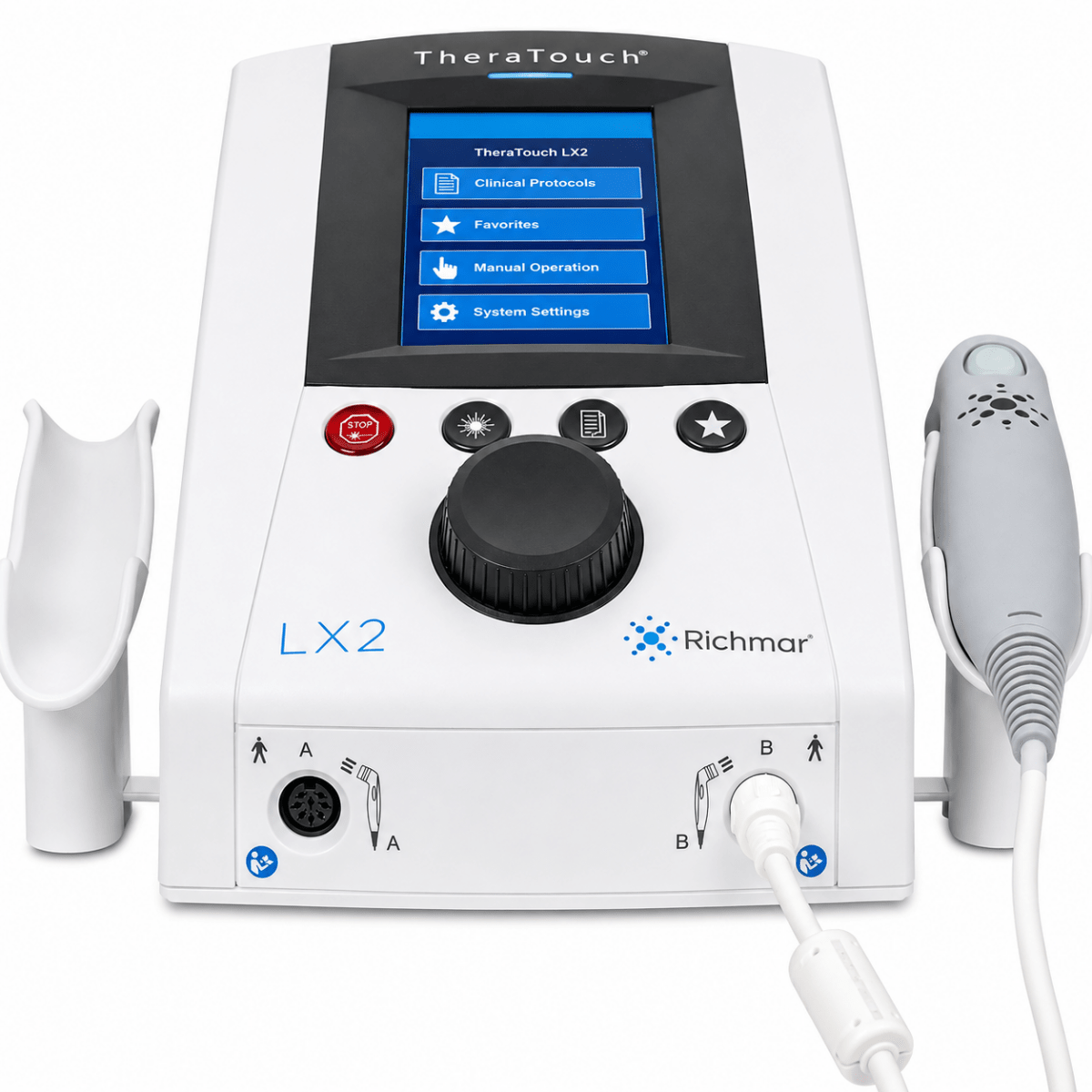

Intuitive Full-Color Touchscreen

The TheraTouch LX2 features a full-color, menu-driven touchscreen designed to simplify clinical treatment setup. The interface guides users through the treatment process in a logical sequence, making the system easy to learn and efficient to operate in busy rehabilitation environments.

Clinicians can use predefined clinical protocols for streamlined treatment setup while also creating and saving customized protocols for frequently used treatment settings. Up to 100 user-defined protocols can be stored within the system.

Built-In Laser Dosage Calculator

A built-in dosage calculator helps clinicians monitor treatment output without manually calculating each dosage measurement. The TheraTouch LX2 can display dosing information in multiple formats, including:

• Joules
• J/cm²
• J/diode

Dosage measurements can be displayed individually or simultaneously, with calculations updating in real time as treatment output is adjusted.

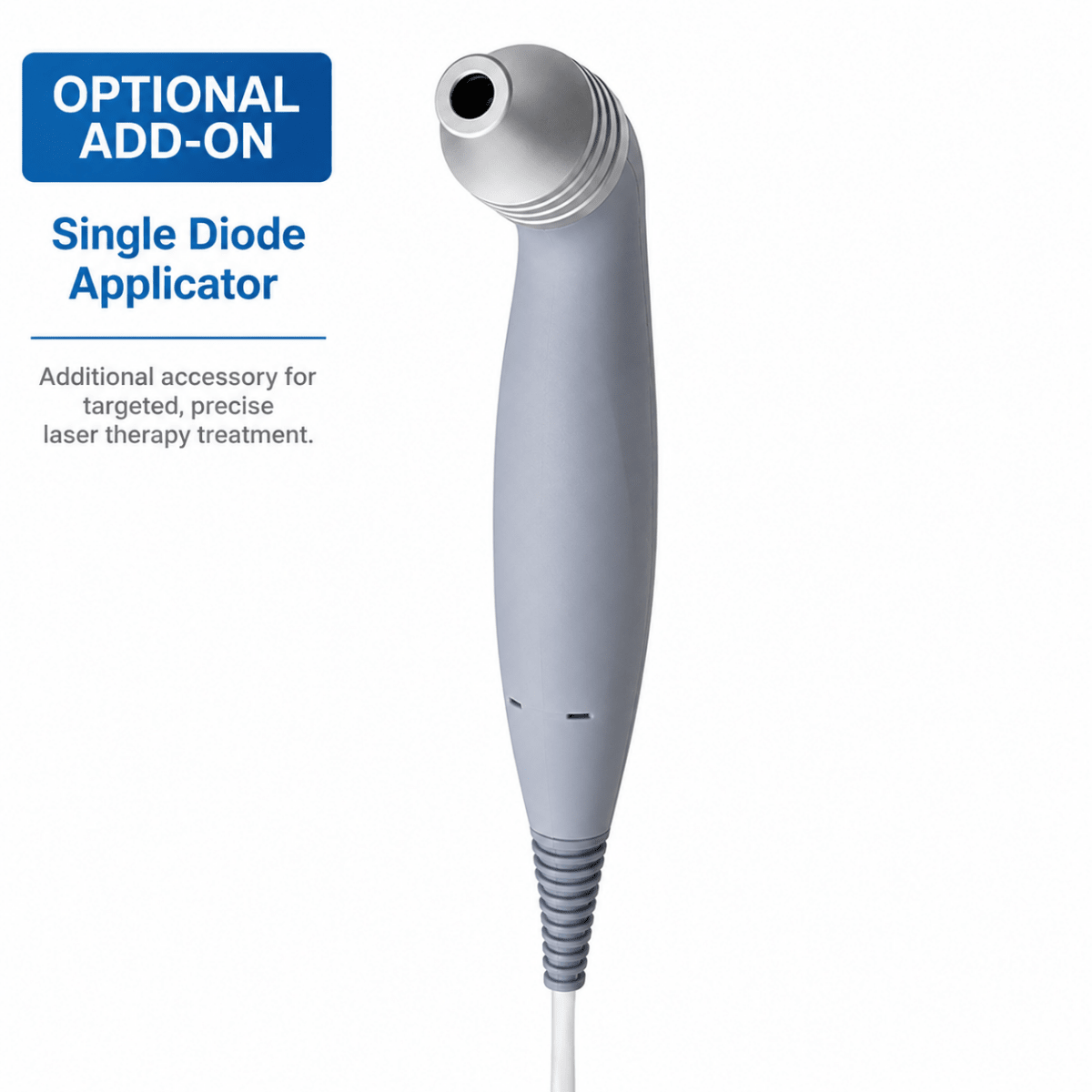

Optional 850 nm Single Diode Applicator

For more focused laser therapy applications, the Richmar TheraTouch LX2 Single Diode Applicator can be added to the system. This optional applicator uses a single 850 nm infrared laser diode delivering 200 mW of power, providing clinicians with a targeted treatment option in addition to the included 9 Diode Cluster Applicator.

• Wavelength: 850 nm
• Laser Type: Infrared laser diode
• Power: 200 mW
• Richmar part number: DQLLLT-SA
• Optional accessory for the TheraTouch LX2

The Single Diode Applicator can be selected as an additional accessory when ordering the Richmar TheraTouch LX2.

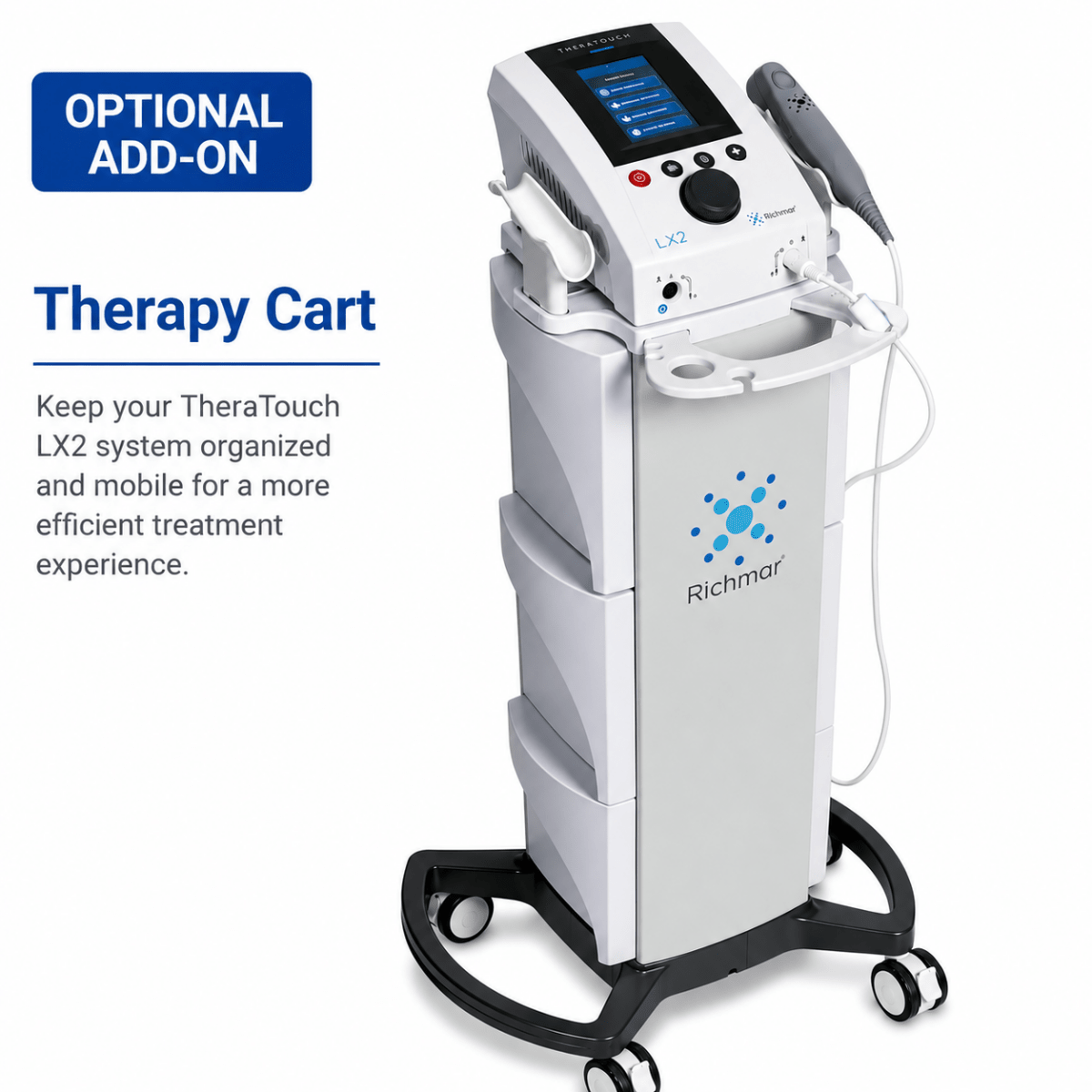

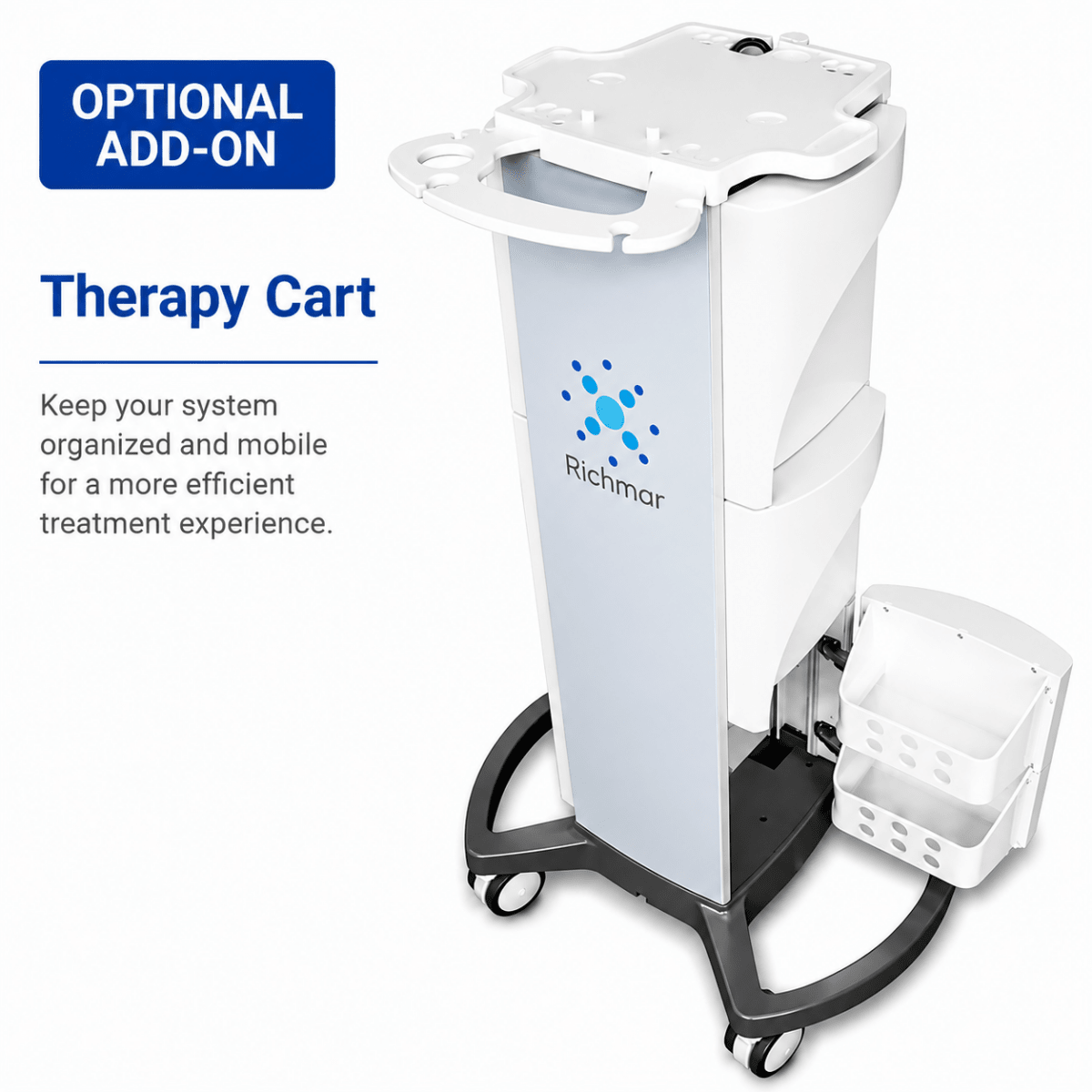

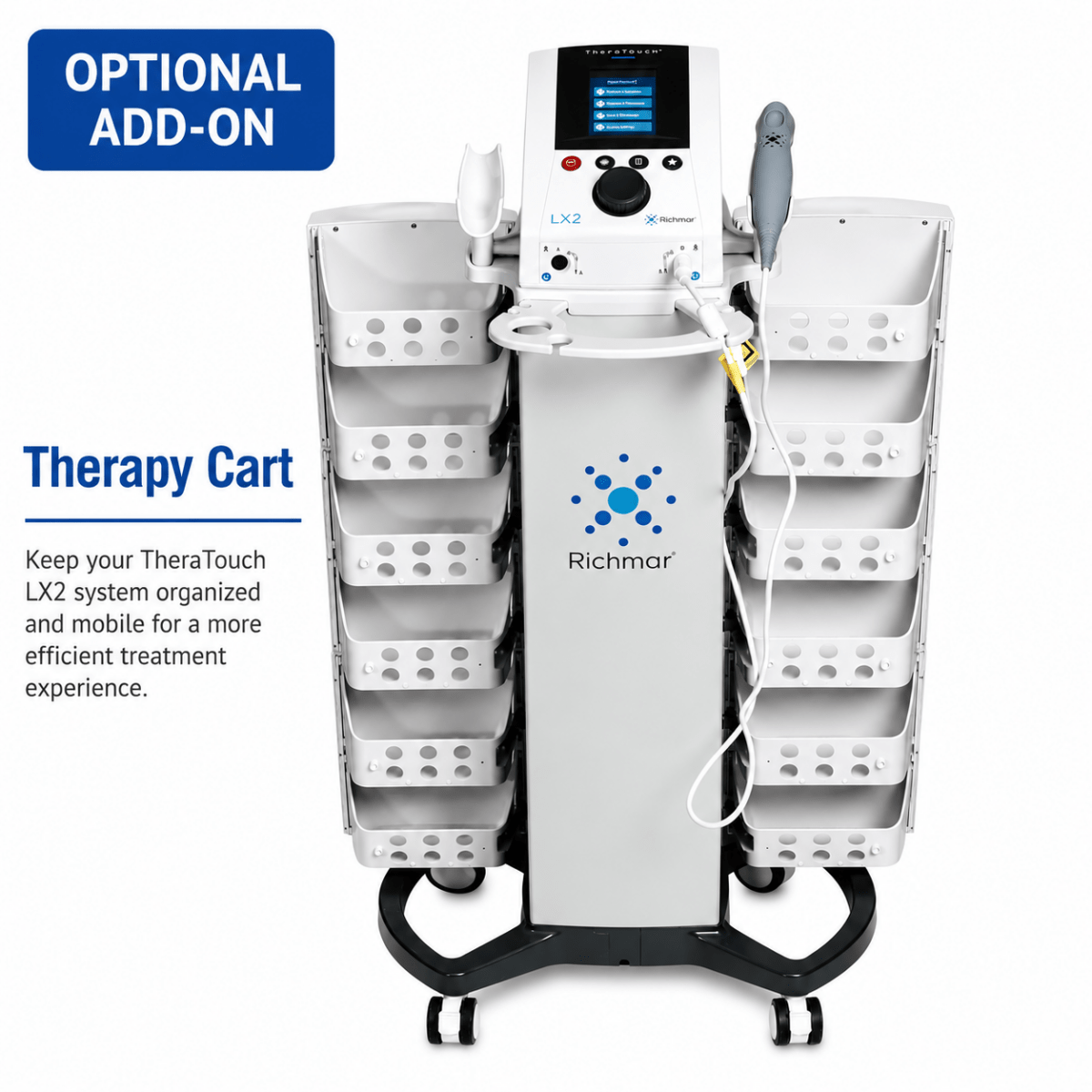

Optional Richmar Therapy Cart

The optional Richmar Therapy Cart provides a dedicated mobile platform for the TheraTouch LX2 and its accessories. Designed to make room-to-room transport easier, the cart helps keep the laser therapy system and treatment accessories organized and accessible in busy rehabilitation facilities.

• Richmar part number: DQCART-2
• Designed for use with the TheraTouch LX2
• Provides a dedicated platform for the laser therapy system
• Helps organize treatment accessories
• Allows convenient room-to-room transport

The Therapy Cart can be selected as an optional accessory when purchasing the TheraTouch LX2.

TheraTouch LX2 Technical Specifications

• Product: Richmar TheraTouch LX2
• Product Number: DQLLLT
• Laser Classification: Class IIIb
• Maximum Treatment Dosage: Up to 35 J/cm²
• Programmable Treatment Time: Up to 4 minutes
• Output Modes: Continuous or pulsed
• Pulsed Mode: 90%
• Emission Frequency: 1 Hz-10,000 Hz
• Output Channels: 2
• Predefined Clinical Protocols: 10
• User-Defined Protocol Storage: Up to 100
• Dosage Measurements: Joules, J/cm², and J/diode
• Standard Applicator: 9 Diode Cluster Applicator
• Cluster Applicator Output: 1040 mW total
• Optional Single Diode Applicator: 850 nm infrared laser diode, 200 mW
• Power: 100-240V, 50/60Hz
• Warranty: 3 Years

Standard & Optional Accessories

The 9 Diode Cluster Applicator is supplied as the standard laser applicator with the Richmar TheraTouch LX2.

• Standard: 9 Diode Cluster Applicator (DQLLLT-CA)
• Optional: 850 nm Single Diode Applicator (DQLLLT-SA)
• Optional: Richmar Therapy Cart (DQCART-2)

The optional Single Diode Applicator and Therapy Cart can be added when configuring your TheraTouch LX2.

Designed for Physical Therapy and Rehabilitation

The Richmar TheraTouch LX2 is designed for professional healthcare environments where clinicians want to incorporate cold laser therapy and photobiomodulation into rehabilitation programs. Its combination of evidence-based protocols, customizable settings, real-time dosage calculations, applicator flexibility, and touchscreen operation makes it well suited for a variety of clinical settings.

• Physical therapy clinics
• Rehabilitation facilities
• Sports medicine clinics
• Athletic training rooms
• Chiropractic practices
• Multidisciplinary rehabilitation centers

For help selecting the Richmar TheraTouch LX2 Class IIIb laser therapy device or determining whether the optional Single Diode Applicator or Therapy Cart is right for your facility, contact Total Rehab Solutions.
