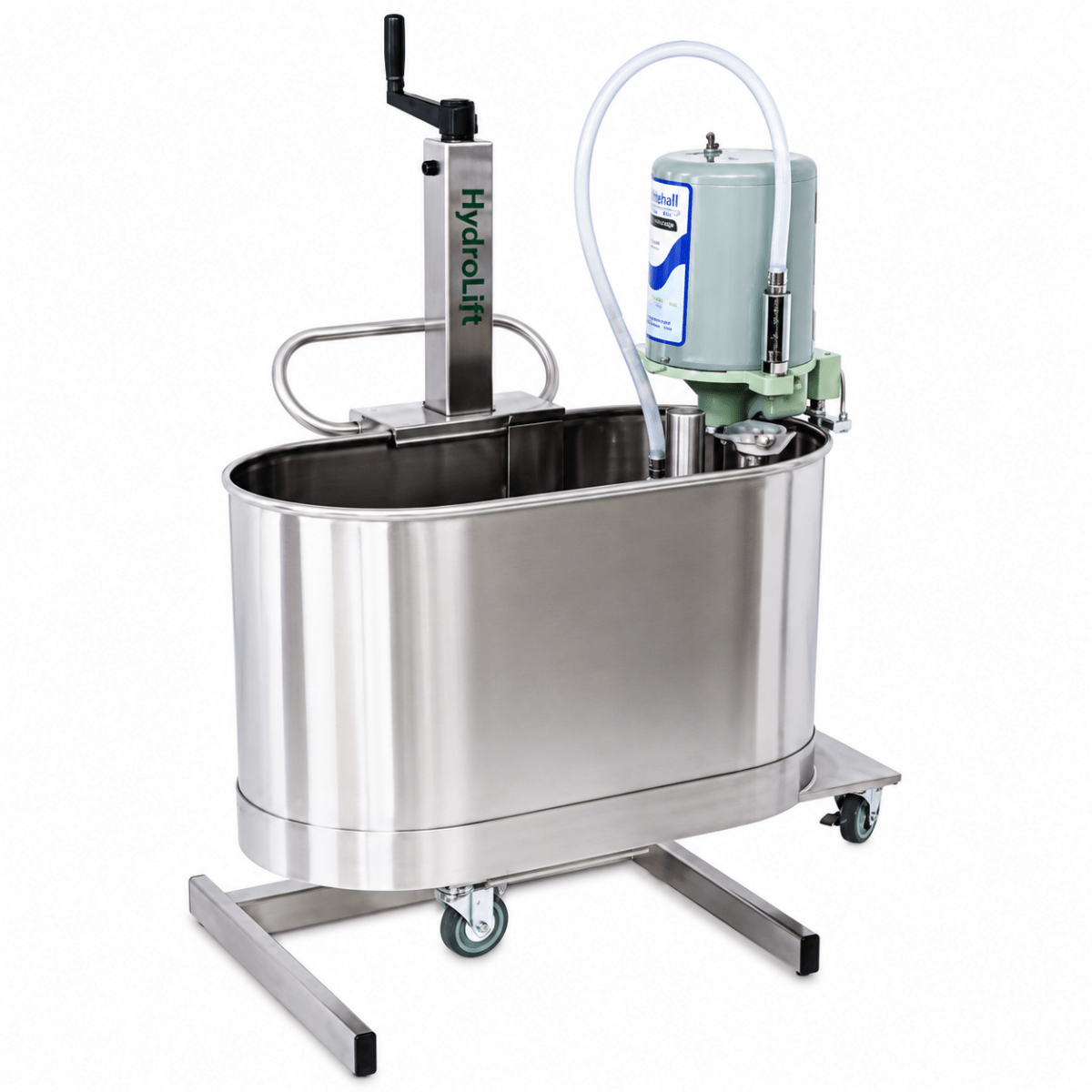

Whitehall 10 Gallon Whirlpool with HydroLift Whirlpool Lifting System

The Whitehall 10 Gallon Whirlpool with HydroLift Whirlpool Lifting System combines the WHP-10-M mobile foot and ankle whirlpool with the HL-10-M HydroLift to create an adjustable hydrotherapy system for professional rehabilitation and healthcare environments.

The compact 10-gallon stainless steel whirlpool is designed primarily for treatment of the foot, ankle, and lower leg. When paired with the HydroLift, the tank can be raised or lowered using the manual crank, allowing clinicians to position the whirlpool at a more practical height for treatment, patient assistance, and routine cleaning.

The mobile whirlpool also includes heavy-duty locking casters, a professional turbine assembly, and a pump-out hose system. No permanent plumbing connection is required, allowing the unit to be used in treatment areas with access to an appropriate sink or floor drain.

Complete Whirlpool and HydroLift System

This listing includes both components required for the adjustable hydrotherapy setup:

• Whitehall WHP-10-M: 10-gallon mobile foot and ankle whirlpool
• Whitehall HL-10-M: HydroLift designed for the 10-gallon whirlpool

The HydroLift is designed to support and reposition the whirlpool tank. It does not lift or transfer the patient. The manual crank allows the clinician to adjust the height of the whirlpool based on the treatment area, patient position, seating arrangement, and clinical workflow.

Whitehall 10 Gallon Whirlpool with HydroLift Features

• Includes the WHP-10-M whirlpool and HL-10-M HydroLift
• 10-gallon mobile foot and ankle whirlpool
• Designed primarily for the foot, ankle, and lower leg
• Manual crank-operated HydroLift system
• Raises and lowers the whirlpool for adjustable treatment positioning
• Helps reduce the need for clinicians to bend over a floor-level tank
• Heavy-duty Type 304 stainless steel whirlpool construction
• Compact tank for facilities with limited treatment space
• Heavy-duty locking casters for smooth transport
• No permanent plumbing connection required
• Reversing turbine supports water agitation and tank emptying
• Pump-out hose directs used water into an available sink or floor drain
• Can function as a circulating warm-water whirlpool or cold-water immersion tank
• Professional 1/2 HP turbine assembly
• Made in the USA by Whitehall Manufacturing

Adjustable Hydrotherapy Positioning

The HL-10-M HydroLift provides adjustable positioning for the 10-gallon whirlpool. Using the manual crank, the clinician can raise or lower the tank to accommodate different treatment arrangements and patient positions.

This adjustable design can make it easier to provide foot, ankle, and lower-leg hydrotherapy while the patient is seated. It can also improve access to the tank when assisting the patient, observing the treatment area, or preparing the whirlpool between sessions.

The HydroLift is designed to move the whirlpool vertically. It is not a patient lift and should not be used to lift or support a person.

Mobile Hydrotherapy Without Permanent Plumbing

The WHP-10-M is a mobile whirlpool that does not require a dedicated plumbing connection. Its reversing turbine can be used to pump water through the supplied pump-out hose and into an appropriate sink or floor drain.

Heavy-duty locking casters allow the whirlpool to be repositioned when needed. When the combined system must be relocated, the tank should be lowered before moving it. The unit should remain stationary with the casters locked during treatment.

Warm-Water Whirlpool and Cold-Tank Use

The 10-gallon whirlpool can support both circulating warm-water hydrotherapy and cold-water immersion. For cold-tank use, the turbine assembly and thermometer can be removed. These components can be reinstalled when circulating warm-water treatment is needed.

This flexibility allows physical therapists, athletic trainers, podiatry professionals, and other healthcare providers to use the same compact tank for different treatment protocols.

Common Clinical Applications

The Whitehall 10 Gallon Whirlpool with HydroLift is designed for professional facilities that provide foot, ankle, and lower-leg hydrotherapy. Its compact size and adjustable height are useful in treatment spaces where patient positioning and clinician access are important.

• Physical therapy
• Occupational therapy
• Podiatry
• Athletic training
• Sports medicine
• Orthopedic rehabilitation
• Post-injury recovery
• Foot and ankle rehabilitation
• Lower-leg hydrotherapy
• Warm-water whirlpool treatment
• Cold-water immersion
• Long-term care and rehabilitation facilities

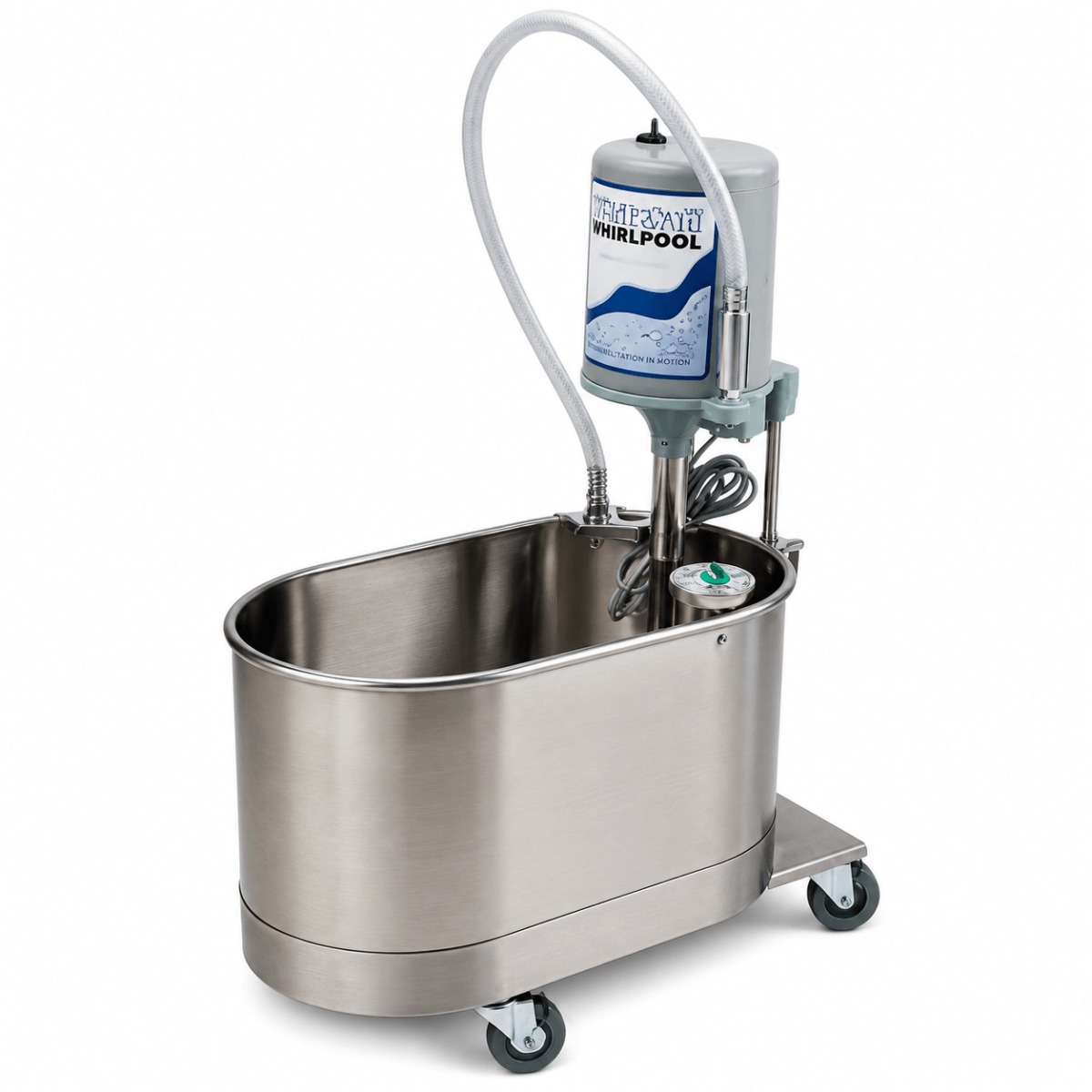

Whirlpool Specifications

• Manufacturer: Whitehall Manufacturing
• Whirlpool Model: WHP-10-M
• Legacy Model: 304
• Tank Capacity: 10 gallons
• Tank Length: 22 inches
• Tank Width: 13 inches
• Tank Depth: 12 inches
• Tank Height: 17 inches
• Tank Style: Foot and ankle whirlpool
• Mobility: Mobile with heavy-duty locking casters
• Tank Material: Heavy-duty Type 304 stainless steel
• Finish: Standard stainless steel
• Turbine Motor: 1/2 HP jet pump motor
• Drainage: Reversing turbine with pump-out hose assembly
• Primary Treatment Areas: Foot, ankle, and lower leg
• Compliance: ETL Classified by Intertek

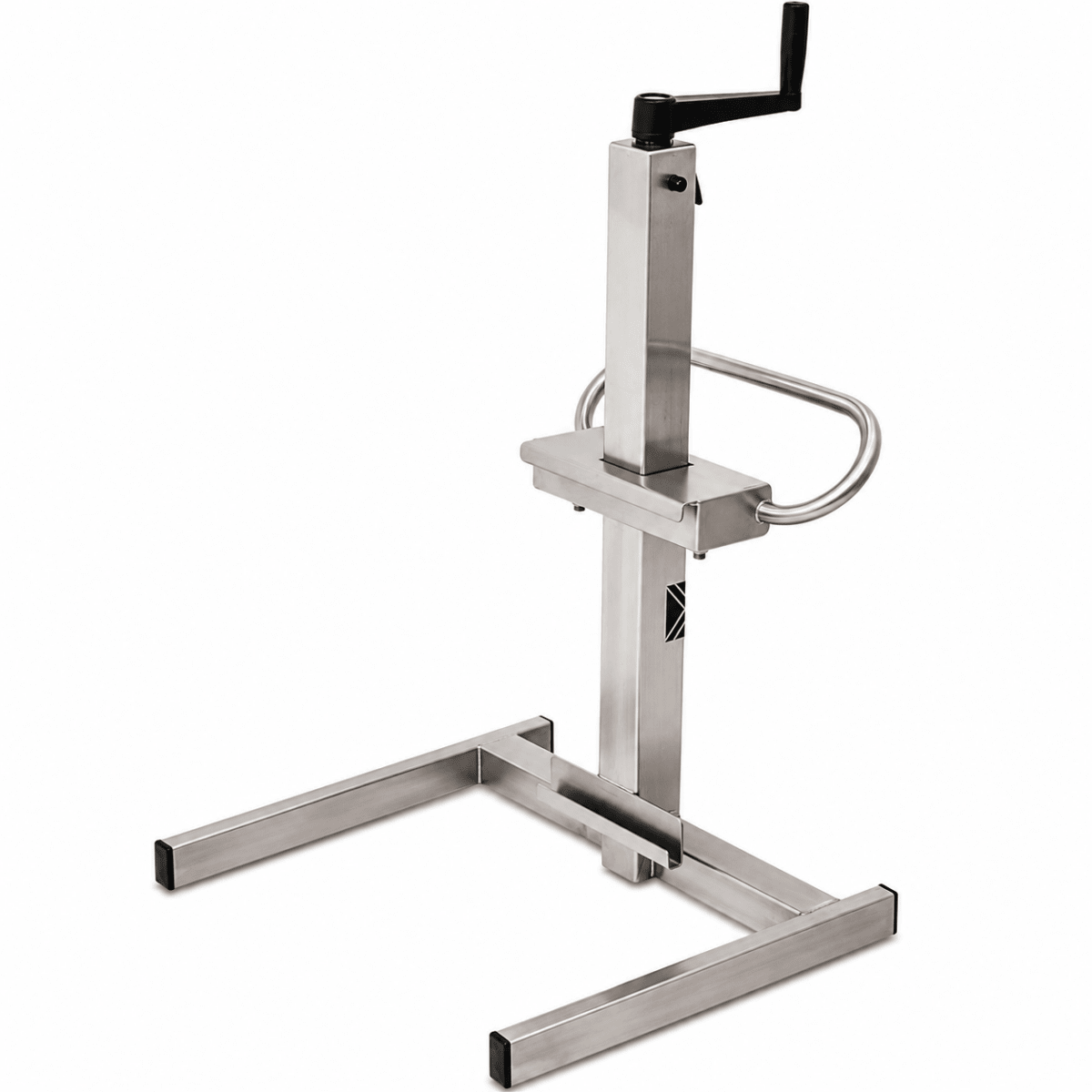

HydroLift Specifications

• HydroLift Model: HL-10-M
• Compatible Whirlpool: Whitehall 10-gallon whirlpool
• Adjustment Method: Manual crank
• Base Width: 19 inches
• Base Depth: 19.5 inches
• Maximum HydroLift Height: 53 inches
• Compatible Tank Length: 22 inches
• Compatible Tank Width: 13 inches
• Compatible Tank Height: 17 inches
• Function: Raises and lowers the whirlpool tank

Benefits of the Whirlpool and HydroLift Combination

Improved Clinician Access

The HydroLift allows the clinician to raise the whirlpool from a lower position to a more accessible treatment height. This may reduce excessive bending and make it easier to observe the treatment area and assist the patient.

Flexible Patient Positioning

The adjustable height can accommodate different chairs, seating positions, and treatment arrangements. This is especially useful when treating the foot, ankle, or lower leg of a seated patient.

Compact Treatment Footprint

The 10-gallon tank provides professional hydrotherapy performance without requiring the floor space of a larger extremity or sports whirlpool. The HydroLift base measures approximately 19 inches from side to side and 19.5 inches from front to back.

No Permanent Plumbing Required

The mobile whirlpool can be filled near an appropriate water source and emptied using the reversing turbine and pump-out hose. This makes the system suitable for facilities without a permanently plumbed hydrotherapy room.

Warm- and Cold-Water Versatility

The removable turbine assembly and thermometer allow the tank to be used for cold-water immersion as well as circulating warm-water whirlpool treatment.

Durable Stainless Steel Construction

The whirlpool tank is fabricated from heavy-duty Type 304 stainless steel for strength, durability, and dependable use in professional clinical environments. Stainless steel also provides a smooth surface that is easy to clean and sanitize.

HydroLift System vs. Standard Mobile Whirlpool

A standard mobile foot and ankle whirlpool remains at a fixed tank height. The HydroLift system adds vertical height adjustment, allowing the clinician to raise or lower the whirlpool based on the treatment setup.

The HydroLift configuration may be the better choice for facilities that regularly treat seated patients, need improved access to the tank, or want greater flexibility in positioning the whirlpool. A standard mobile whirlpool may be sufficient when height adjustment is not required.

Why Choose Whitehall Hydrotherapy Equipment?

Whitehall manufactures professional hydrotherapy equipment for physical therapy, athletic training, podiatry, rehabilitation, and other healthcare environments. Its whirlpools combine heavy-duty stainless steel construction, professional turbine systems, practical mobility, and tank sizes designed for specific body areas.

Browse our complete Whitehall hydrotherapy equipment collection, compare additional physical therapy whirlpools, or read our guide on how to choose the best physical therapy whirlpool.

Frequently Asked Questions

What is included with the Whitehall 10 Gallon Whirlpool with HydroLift?

This listing includes the Whitehall WHP-10-M 10-gallon mobile foot and ankle whirlpool and the Whitehall HL-10-M HydroLift designed for the 10-gallon tank.

Does the HydroLift lift the patient?

No. The HydroLift raises and lowers the whirlpool tank only. It is not designed to lift, transfer, support, or position a patient.

How is the HydroLift adjusted?

The HydroLift uses a manual crank that allows the clinician to raise or lower the whirlpool based on the treatment setup and desired working height.

What is the maximum height of the HydroLift?

The manufacturer lists the maximum HydroLift height as 53 inches. This measurement describes the lift assembly rather than the height of the whirlpool rim.

Which areas of the body can be treated?

The WHP-10-M is primarily designed for treatment of the foot, ankle, and lower leg below the knee.

Does the whirlpool require permanent plumbing?

No. The WHP-10-M is a mobile whirlpool that does not require a permanent plumbing connection. Its reversing turbine and pump-out hose allow used water to be discharged into an appropriate sink or floor drain.

Can the whirlpool be used as a cold tank?

Yes. The turbine assembly and thermometer can be removed when the tank is used for cold-water immersion. They can be reinstalled when circulating warm-water whirlpool treatment is required.

Can the whirlpool and HydroLift system be moved?

Yes. The whirlpool should be lowered before the combined system is repositioned. The unit uses the whirlpool's heavy-duty casters for transport and should remain stationary with the casters locked during treatment.

What are the whirlpool tank dimensions?

The tank measures 22 inches long, 13 inches wide, and 12 inches deep. The tank height is 17 inches, and its capacity is 10 gallons.

What are the HydroLift base dimensions?

The HydroLift base measures approximately 19 inches from side to side and 19.5 inches from front to back.

What material is the whirlpool made from?

The whirlpool tank is fabricated from heavy-duty Type 304 stainless steel for strength, durability, and ease of cleaning.

Does this product ship by freight?

Yes. Because this listing includes both a whirlpool and lifting system, it ships by freight carrier, and additional freight charges may apply. Contact Total Rehab Solutions to confirm freight costs, availability, and product details before ordering.

Need help confirming whether this HydroLift system is right for your facility? Contact Total Rehab Solutions for assistance with specifications, availability, treatment-room planning, and freight costs.
