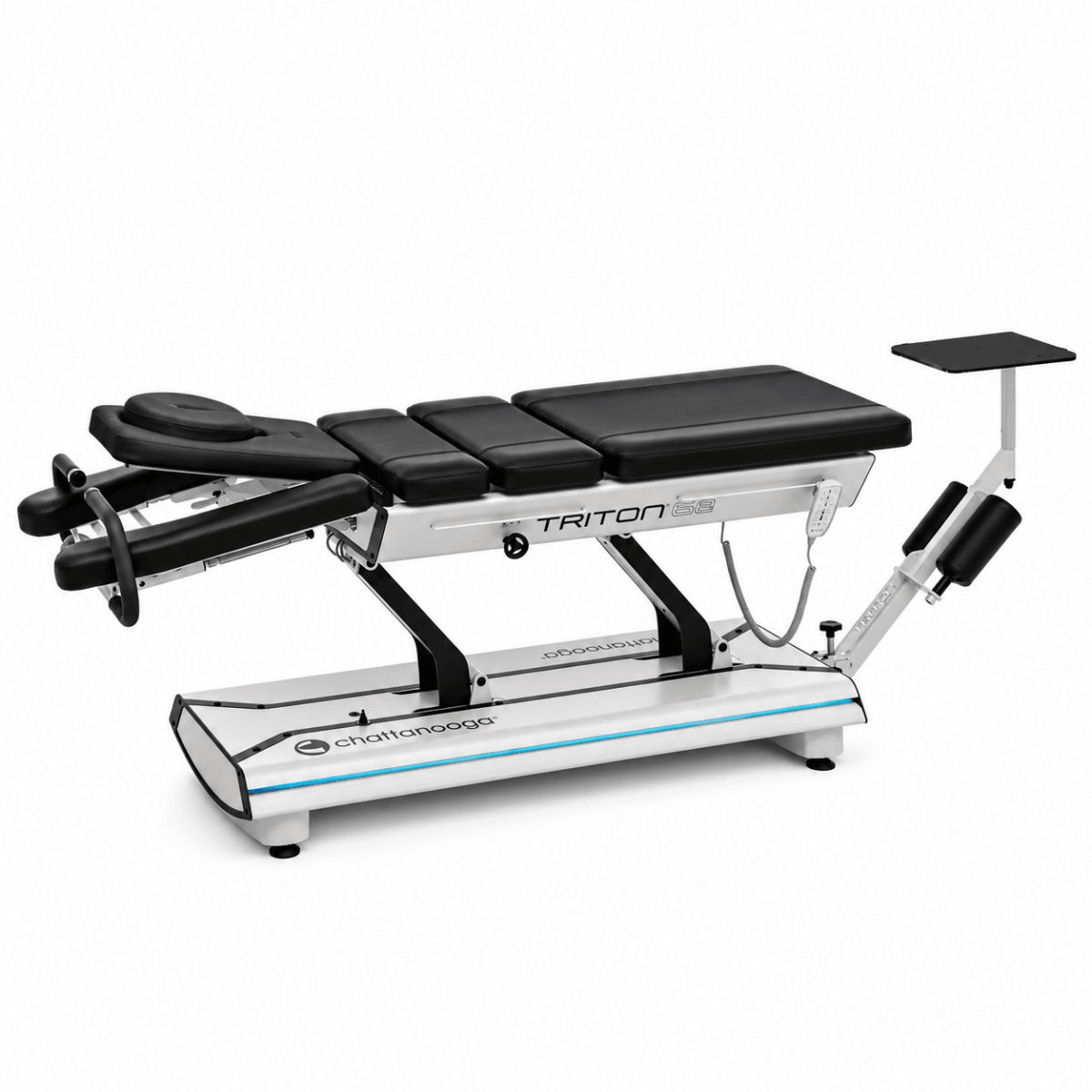

Chattanooga Triton® 6E Traction Table
Request a custom quote to receive the best pricing for specialty products and bulk quantity orders. Custom rehab equipment solutions created just for you!
In modern medicine, spinal distraction has been utilized as a treatment option to help relieve peripheral radiation/sciatica and pain associated with various spine injuries and pathologies.
With more than 40 years of experience in the service of clinicians worldwide, Chattanooga® introduces its next generation of spinal distraction treatment systems. Consisting of a three-tier portfolio, our latest range of traction tables includes the highly-functional Galaxy traction line, the mid-range Triton 6M, and the optimum product in the series, the Triton 6E.
Sporting a selection of sophisticated features, the Triton 6E employs modern technology to help put the clinicians in total control with the the touch of a button. Fully electric and highly adjustable, when combined with one of our Triton traction units, this premium table helps provide the best possible support for practitioners looking to push their traction treatment to the next level in innovation.

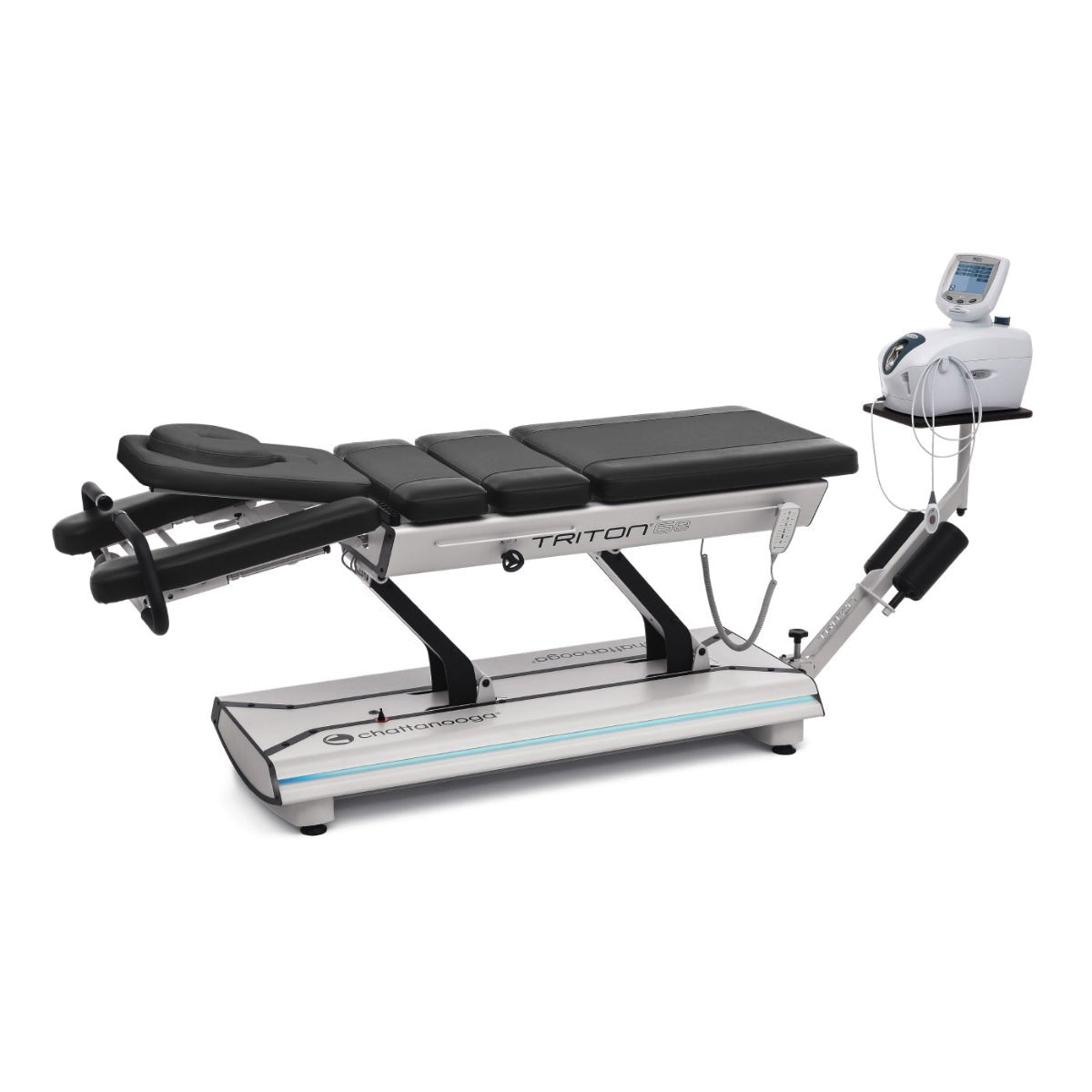

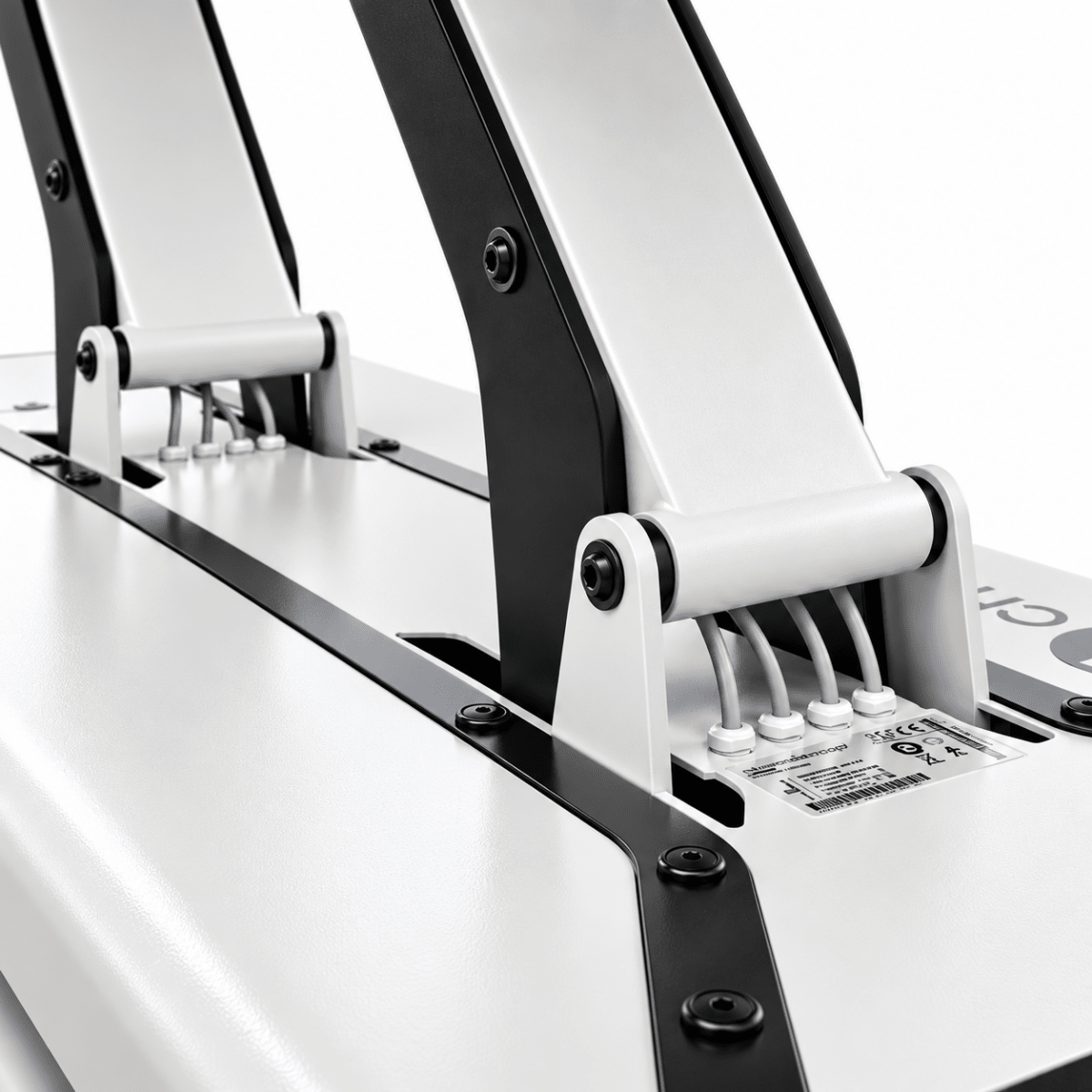

- One of the most advanced electric traction tables, powered by 6 modern actuators, assist in friction-free movement of head, pelvic, chest and leg sections

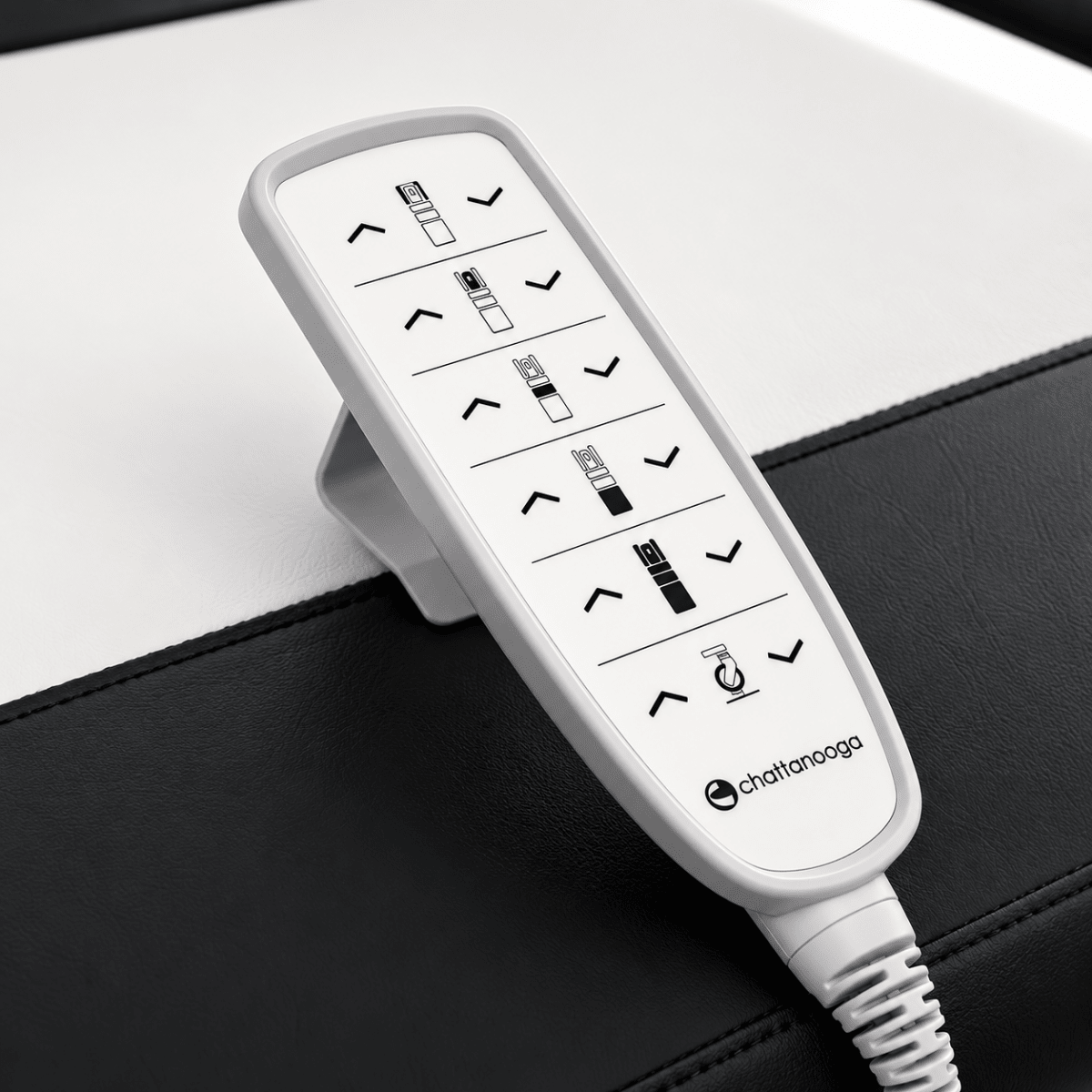

- Ideally positioned hand remote control allows for easy access around the table

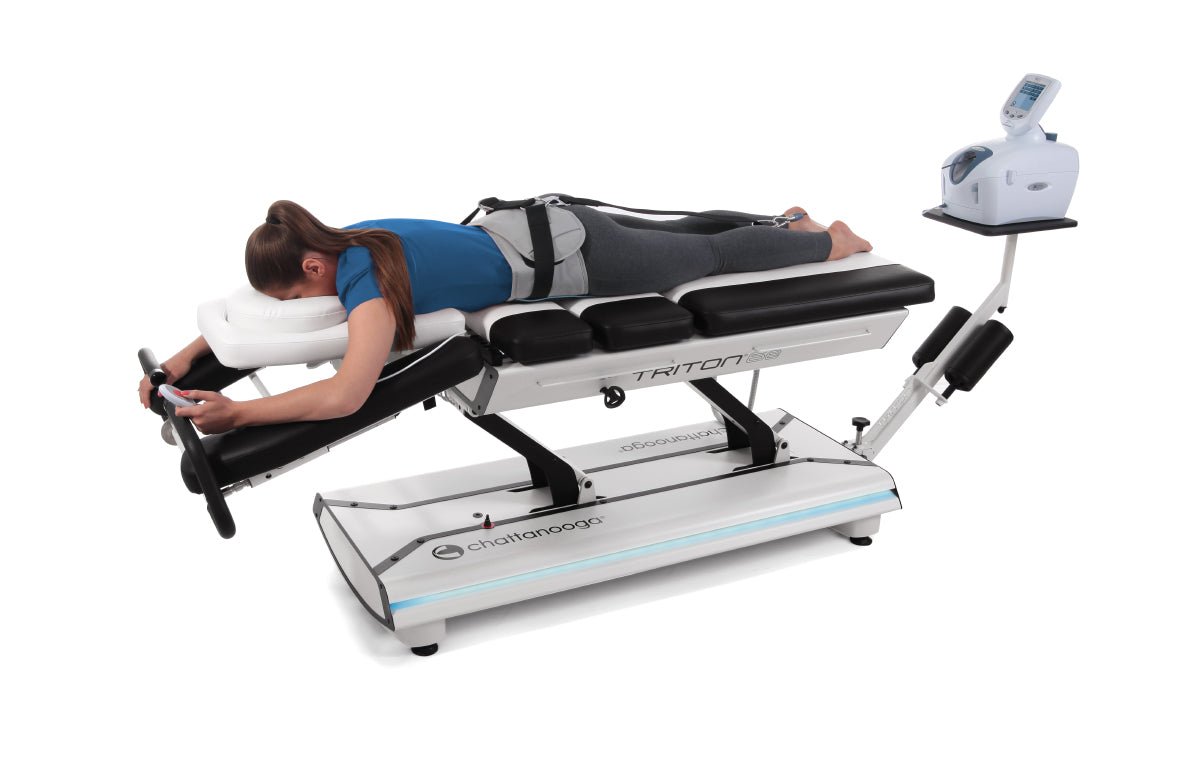

- 6-section treatment table to provide maximum patient comfort in prone and supine positions for manual and traction therapy
- Pelvic tilt section can be adjusted from 0° to 20° to aid flexion of lumbar spine and to help address pelvic asymmetry
- Head piece can be repositioned from -30° to +40° to allow easy access to thoracic and cervical spine

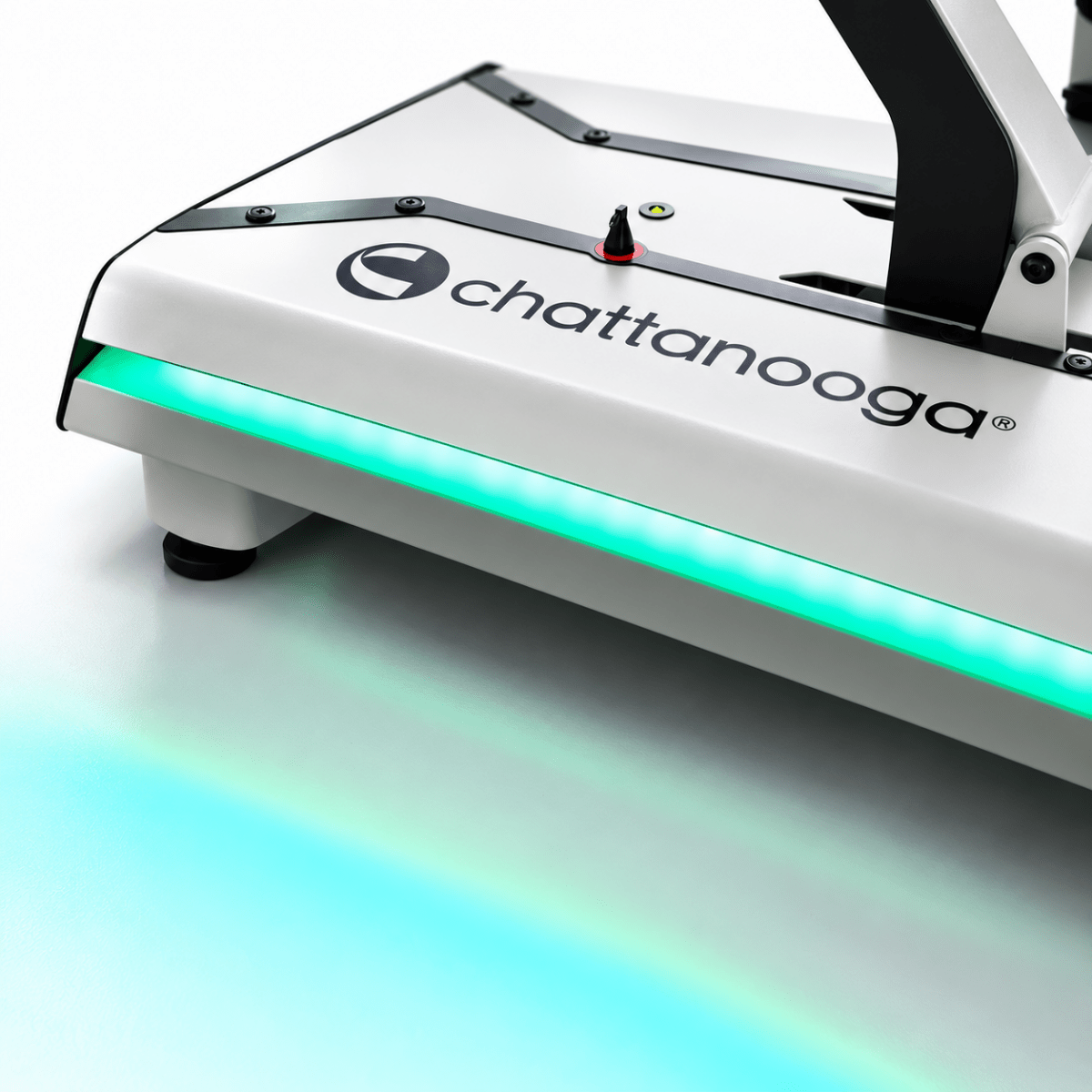

- Atmospheric LED light system in table frame, with cycling or fixed modes
- Tuck-away grab bars for hanging traction without thoracic restraint

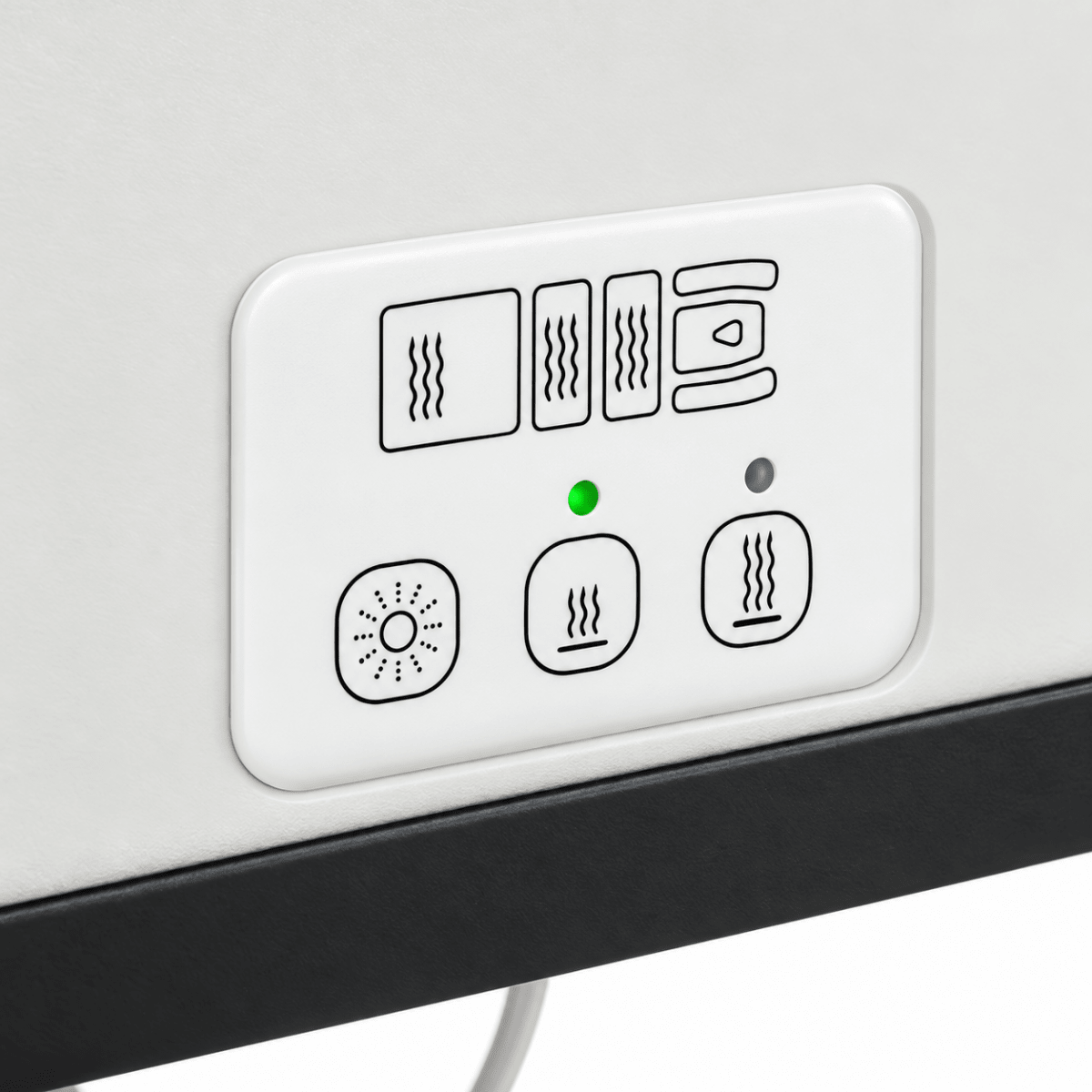

- Heated cushions provide greater patient comfort
- Easy to transport and secure once in place
- Complete range of accessories to suit every patient need

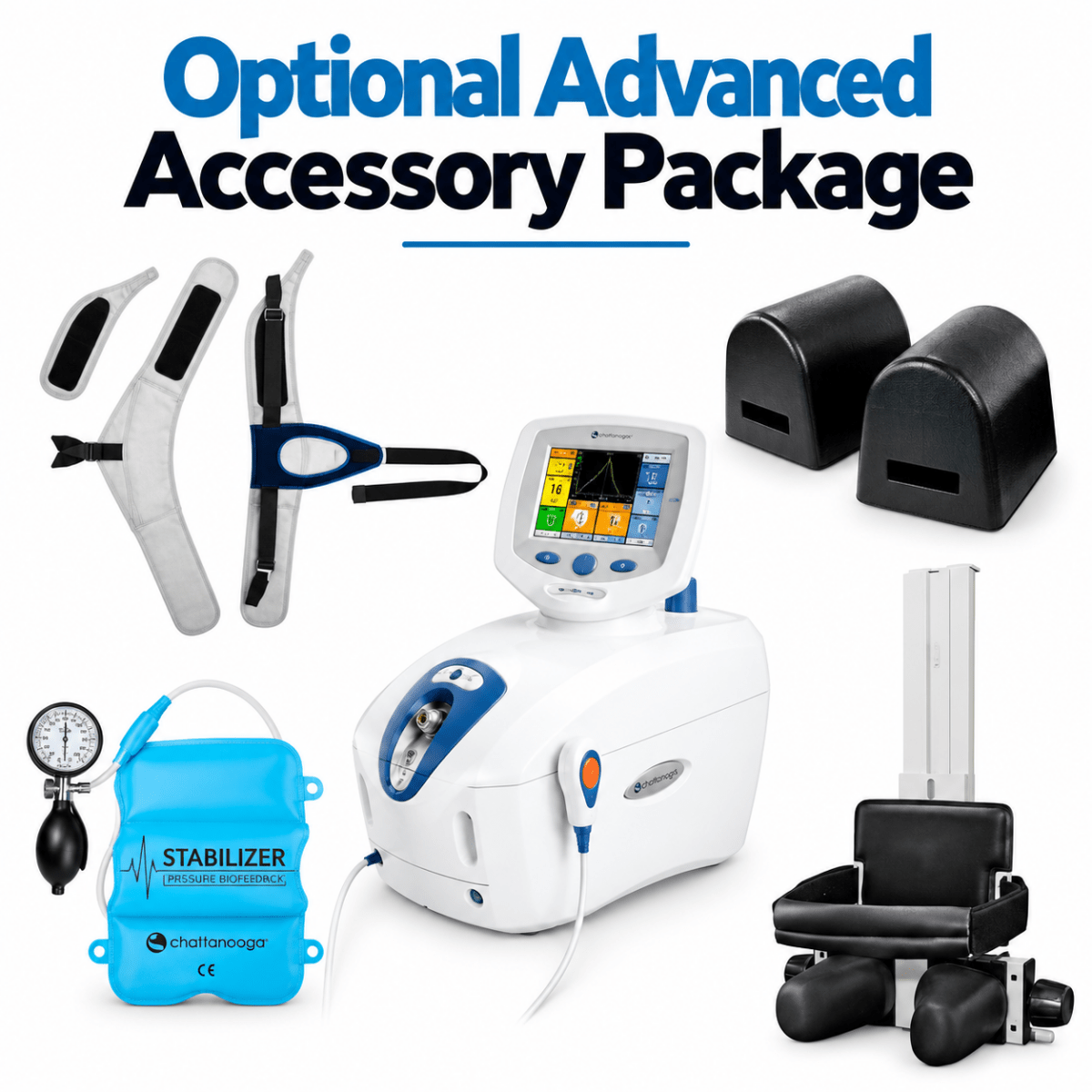

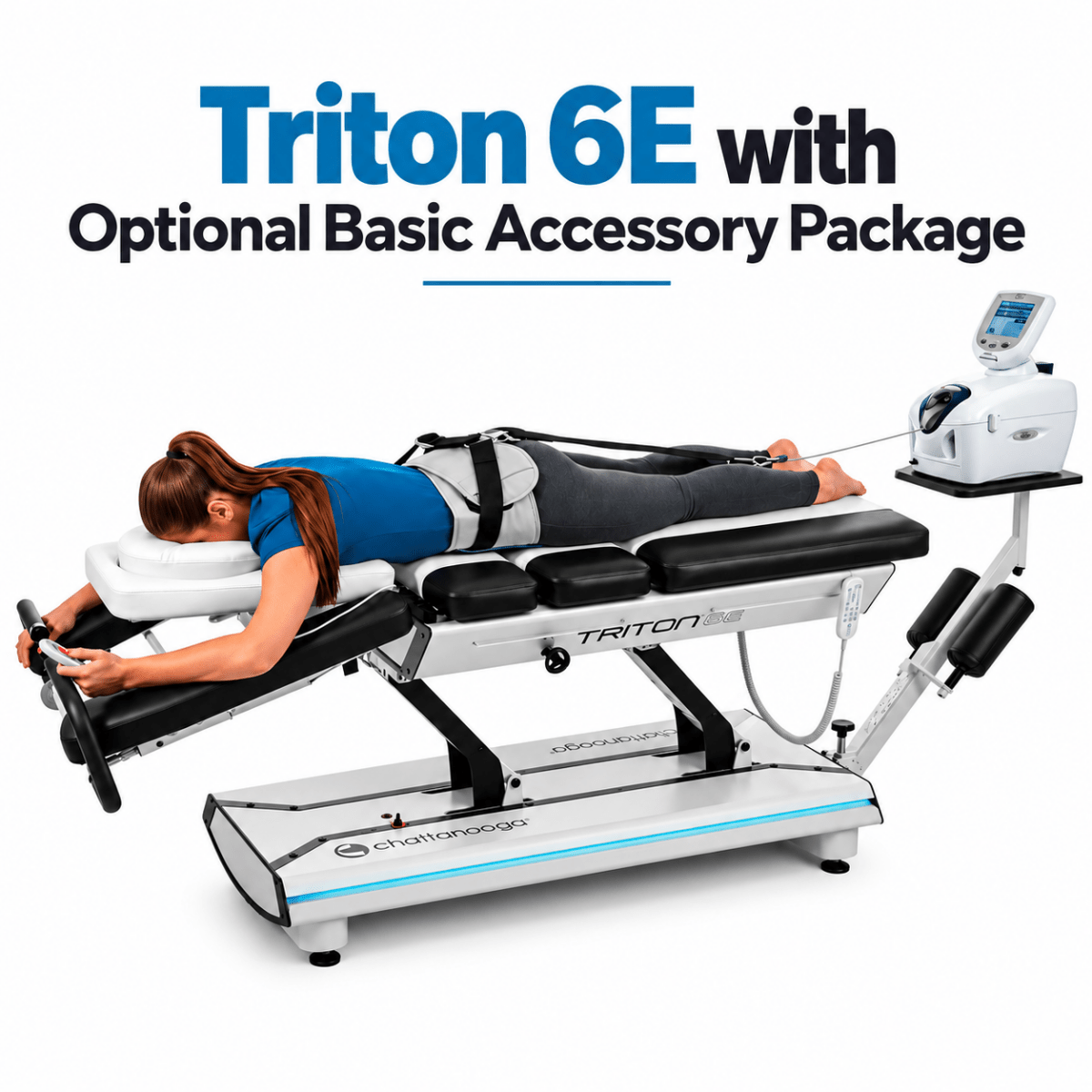

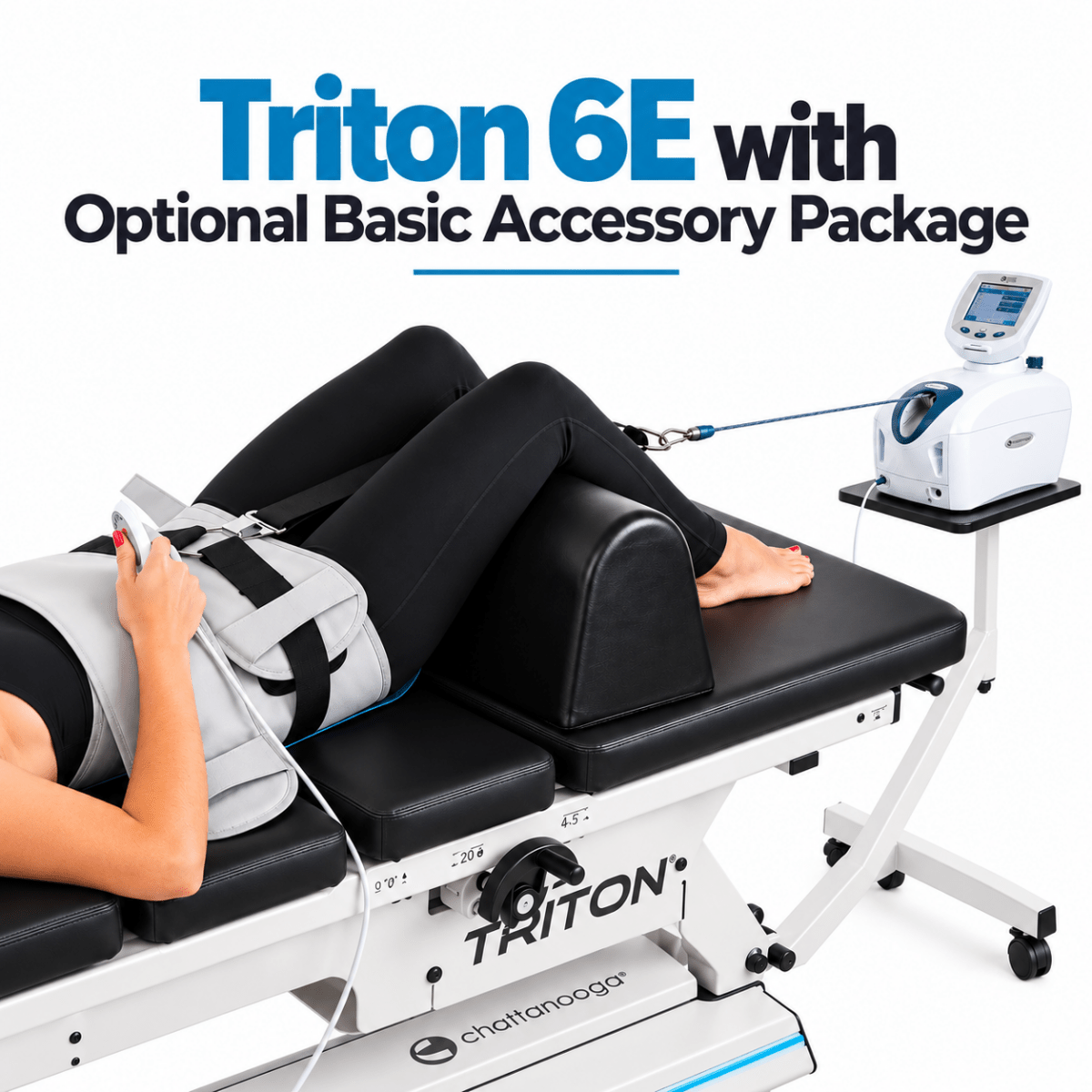

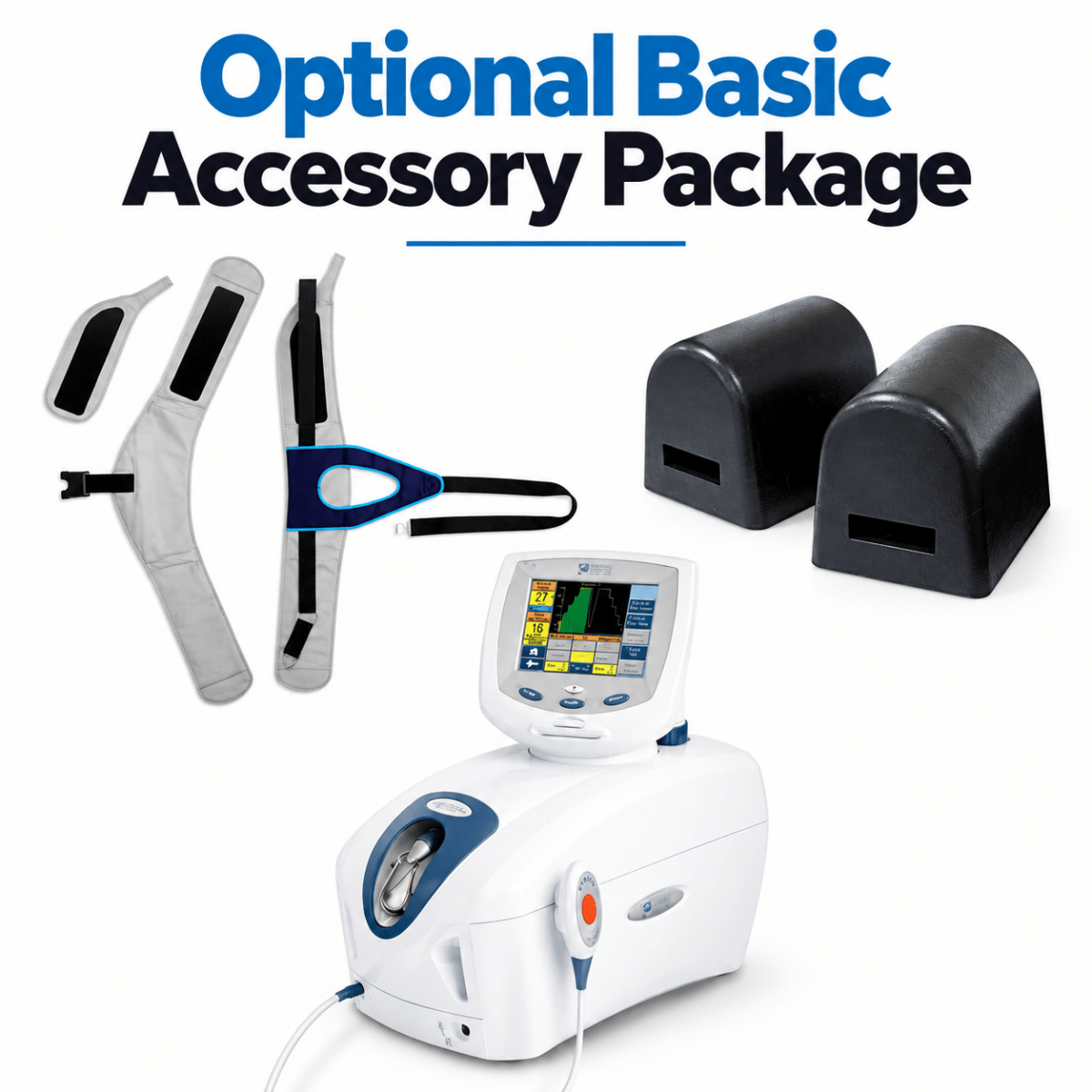

- ADD Triton DTS Advanced or Basic Accessory Packages (#8250, #8245)listed separately.
Technical Specifications |
|||
Mains Power: |
120 V~ 50/60 Hz |
|
|
Current: |
Max 2A with 120V |
|
|
Dimensions: |
Total* |
90.5 x 37 x 31 inches |
|
Head / Back section |
|
28 inches |
|
Middle section |
|
8.6 inches |
|
Pelvic section |
|
10 inches |
|
Leg section |
|
30 inches |
|
Width |
|
27.5 inches |
|
|
Height |
|
19 inches 37 inches |
|
Angle Inclination |
Head Section -30° to +40° |
|
Adjustment: |
Pelvic Section 0° to 20° |
||
|
Leg Section 0° to 45° |
||
|
Displacement |
|
Leg Section 4 inches |
Heating Temperatures: |
95° & 100.4° F |
||
LED Lighting: |
7 colors & FADE option |
||
Dynamic lifting capacity: |
440 LBs |
|
|
Maximum workload: |
605 LBs |
|
|
Weight: |
440 LBs |
|
|
Electrical Safety Class: |
Class I, Type B |
|
|
Safety Tests: |
CE, Class I Rule 12 |
|
|
Table Weight: |
494 LBs |
|
|
Average Shipping Weight: |
550 LBs |
|
|
Shipment Dimensions: |
92.5 x 37.4 x 31.5 inches |
||
* Dimensions are listed as L x W x H |
